JMRI: LogixNG Tables Table Editor

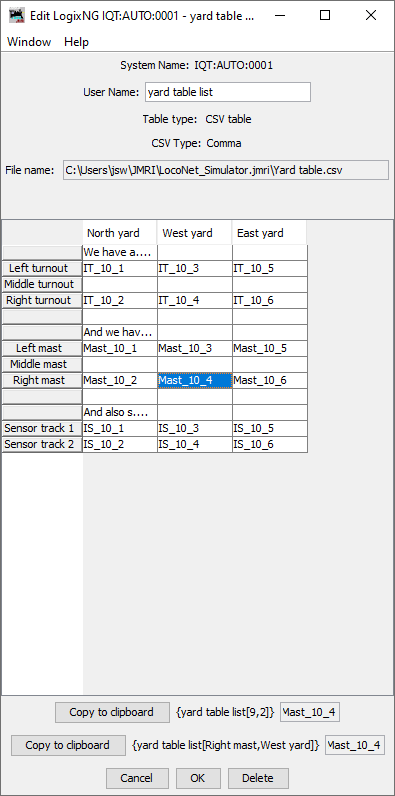

The tables editor displays the content of the currently loaded CSV file.

• Table Content
• Copy to clipboard buttons
• Cancel
• OK
• Delete

Table Content

System Name

The system name for the LogixNG table. The system name cannot be changed.

User Name

The user name for the LogixNG table. This is a free form field that contains a meaningful name. The name be can be changed.

Table Type

The table type cannot be changed. Only CSV is currently implemented.

CSV Type

The delimiter for the file.

File name

The file name. Once a CSV table has been loaded, it stays active until PanelPro is stopped. If the file data has been changed and the configuration has been stored, it will take effect when PanelPro has been started and the xml data file has been loaded.

Copy to clipboard buttons

When a cell in the CSV table is clicked, the two copy to clipboard buttons will be active. By clicking on one of the buttons, the cell content will be copied to the OS clipboard. Note: This is not the LogixNG clipboard.

The top button uses the row/column number format. The lower button uses the row name/column name format.

After the data has been copied, the table reference can be pasted into an expression or action reference.

Cancel

When the Cancel button is pressed, the Edit LogixNG table window will close. Pending changes to the user name are discarded.

OK

When the OK button is pressed, the Edit LogixNG table window will close after saving the changes to the user name.

Delete

When the Delete button is pressed, the LogixNG table and its content will be deleted. The LogixNG table delete confirmation dialog will be displayed.

---
