JMRI® Throttle Window - Frame Properties


Frame Properties

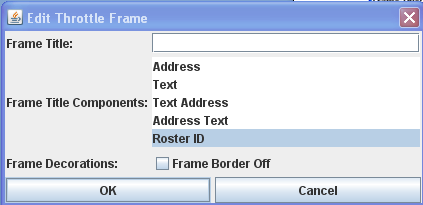

Frame Edit

Frame Title:Type the title of your choice for the Throttle frame. This is referred to below as"text".

Frame Title Components: Select the text component desired. There are two components which can be in the title bar of the throttle "Text" and "Address" The selections allow either or both to be in the title (in the order they appear in the selection), or one can opt for the description in the locomotive Roster Entry

Address --Automatically display the address of whatever locomotive is selected. (default)

Text -- Display the text that you enter in the field as the title at the top of this window

Text Address -- Display the text you entered, followed by the selected address

Address Text -- Display the selected address, followed by the text you entered

Roster ID -- Display the selected roster ID

(Note that if you enter text, it will not be visible unless one of the middle three modes is selected)

Frame Decorations:

This will remove the individual control bars for the separate panes of the throttle. This is advised for Windows users, as clicking the minimize buttons causes the restore button to be lost behind the rest of the panels. Recovery entails using the view menus to remove and then restore the panel in question.

The OK button adds the edits.

The Cancel button aborts the operation.
