Getting Started with DecoderPro®

How do I start the DecoderPro program for New User?


For First Time or totally new Install. Once you have downloaded the JMRI software and installed it, simply open the program in the usual manner for your operating system. An icon for DecoderPro should be installed on your Desktop.
icon

DecoderPro may be opened by double click on the Desktop icon and the DecoderPro initial screen as shown below will be displayed on completion of startup for a brand new install with no settings stored in your computer.

First time install start screen

new

Press the Next > button to start the wizard.

wizard

Press the Next > button to continue.

wizard

Select your system and other options for your system will be shown.

wizaard

Select your system connection.

wizard

Select your Serial port and Command station type.

wizard

Next Connection Prefix and Connection Name, At this time leave as default.

Press the Next > button.

wizard

Press the Finish button.

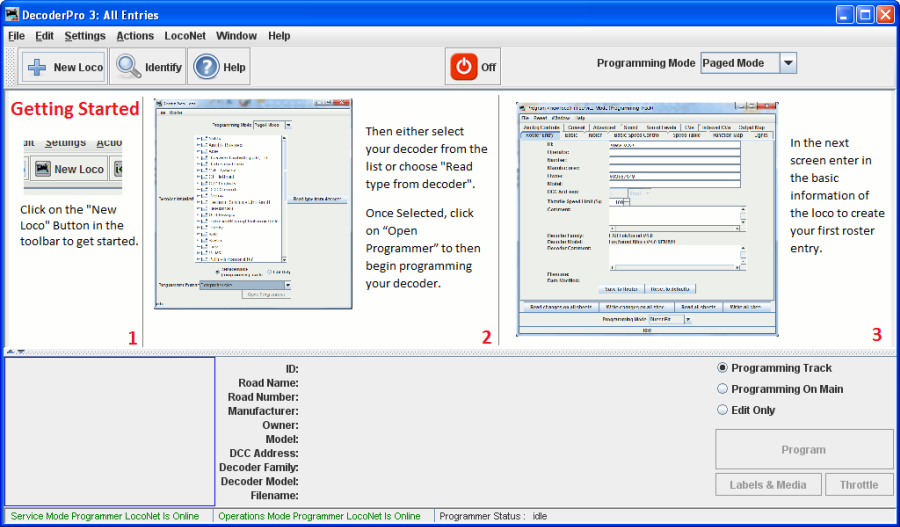

The DecoderPro main window is displayed with instructions for Getting Started:

new start

When you want to set up the other preferences at this time, go to Edit -> Preferences. A pane will come up that allows you to set up the system for your particular configuration.
