DecoderPro® Programming Modes

Service Mode Programmer

Back to Index


The Service Mode Programmer is opened using the New Loco icon in the DecoderPro® Tool Bar or by selecting locomotive from your roster and selecting Programming Track and pressing Program button.

An alternate method is by right clicking on a locomotive in your roster and selecting Programming Track and Program from context menu.

Double clicking on a locomotive in the roster will open the Programming Track Programmer.

Service Mode (programming track) Programmer - Select to program the locomotive on the dedicated programming track. (Probably because the Locomotive has to be taken to the servicing track to be programmed). Not all command stations support a dedicated programming track, and some brands will shut down the mainline power when in programming mode (not pleasant when you have an ops session in progress.

Reading your Decoder On the programming track:

To obtain information from the decoder on the programming track we rely on the ability of the decoder to respond to a query, what is known as Readback. Most decoders cannot talk to send information back to the command station. They just respond to instructions, so special instructions were developed which allow the Command Station to determine the contents of the decoder's memories

Basically the decoder is asked a whole series of questions and when the answer is "yes" it turns on the motor for only a very brief time. The command station notices the current being drawn and stops asking questions, since it got the yes answer to the last question. This can take a bit of time since the command station must ask all possible values waiting for the yes response. You can observe the process by looking down at the bottom line of all the panes (the status bar) where the word idle is normally shown when the programmer is inactive. When DecoderPro is working it will show you what events are being performed. Sometimes you can see the loco jump a bit as the decoder pulses the motor for "yes". The computer folks call this an ack (for acknowledgement). When the Command Station sends the decoder data that is in agreement with what is in the CV of the decoder, the decoder will send an ack. If the ack is never received the Command Station tells DecoderPro that the Decoder did not respond.

Writing to Decoder on the programming track:

The CV data is written to ANY and ALL decoders on the programming track. When the write has been successful the decoder will acknowledge (ack) to the Digital Command Station (DCS.) If the ack is not seen by the DCS it says the decoder did not respond. (error code 308 in JMRI)

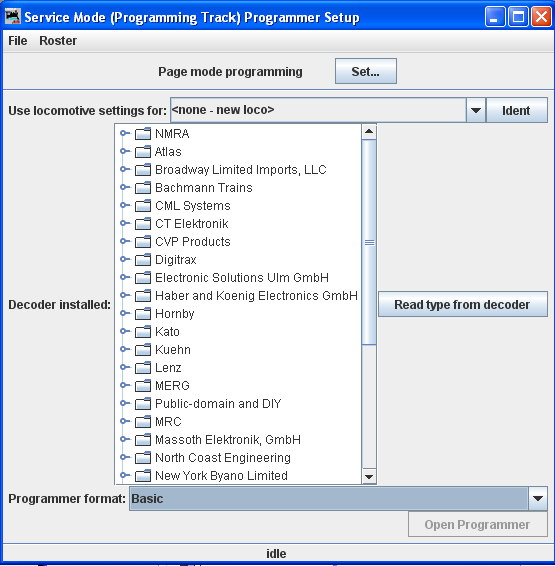

Click on Service Mode (programming track) Programmer and the Service Mode Programmer (Programming Track) Setup window opens

Service Mode Setup

The first item at the top of the service mode programmer pane is a selection for the mode used to program your decoders. This is a legacy to the olden times and rather technical, but fortunately DecoderPro has matured to the point that it is quite good at selecting the best mode for you. It uses the selection of command station from your Preferences selections, combined with the decoder manufacturer and type selections (which we'll get to real soon now). Just accept what's there as a good start. And, fear not, for each pane in the programmer has a button which can be used to change programming mode if you have a problem. For further details on programming mode click here.

Now let's determine the type of decoder that's installed in the locomotive that you would like to program.

The decoder identification is entered by using the selections in the middle of the page.

Since we want to know what type of decoder is in the locomotive, we can either look up what was listed when it was entered in the roster stored in this computer, or we can ask it what it's manufacturer and firmware version are. The first is method is IDENT, and the other is READ TYPE. You can use one or the other, but they are mutually exclusive.

IDENT is used to identify a locomotive that is already stored in your computer's roster file. You can use the drop down arrow to display a listing of locomotives in your roster, and then select the desired locomotive from the list. An alternative is to be lazy and click the IDENT button. The program will then query the locomotive to get it's address which is linked to the roster entry. The DecoderPro roster entry includes the decoder type used when it programmed the locomotive. If it gets a valid address, but there is no roster entry with that address, then you will get an error message.

READ TYPE is the other method located in the center of the page. If you click on Read Type From Decoder button, the system will query the decoder to get the manufacturer and firmware version number. From this information it will highlight all the decoders which are known to match. There may be several, usually with differences in the physical shape and size to fit in a particular locomotive's shell, or a few more "bells and whistles". When confronted with a large selection, you can either remove the shell to try to read information printed on the decoder itself, or just select one of the ones with the fewest letters in the model number. (Letters are often used to separate the shape differences which have no bearing on the electronic functions of the decoder.) Just be aware that some functions that DecoderPro allows you to program may not be fully operable.

As noted above, these methods will work only with command stations which are capable of reading back the contents of CV's, and the process does take some time. Many lower end and/or older systems and decoders do not provide readback capability. If the command station cannot read CV's from the programming track, you will have to select the decoder manually by using the large selection box in the middle of the page. With it you can select the manufacturer, family and specific model of the decoder. This manual method may be the best and fastest way if you know for sure "What's in there".

If you have a decoder that doesn't appear in the listing, you may want to check to be sure that you are using the most up to date version of DecoderPro, because manufacturers are adding models almost faster than the team can enter the new decoder definitions into the files. You can choose a manufacturer's version which is as close as you can find, or if you're only interested in basic programming functions, use the NMRA© decoder which is a generic file of the CV's contained in their standards.

The last item on this pane is the Programmer Format entry. It is preset by your Preferences entry, but you can select other programmers using the drop down arrow.

Once you have selected a decoder, or DecoderPro has done it for you, the Open Programmer button will become activated and you'll be able to move on with Service Mode Programming.

When you click on the Open Programmer button, the selected Programmer window will open. Both programmers, Basic and Comprehensive open to the Roster Entry pane.
