DecoderPro® Main Window
Menu Bar - Consisting Control Window
Three types of consists are used on DCC systems:
- A basic or
primary address consist, where
each locomotive is assigned the same address on the
programming track, or on the main with OpsMode
Programming (if supported by the command
station and decoder).
- A Command Station Assisted
Consist (CSAC) which builds the consist using
a function of your command station. Command Station
Assisted Consists go by the trade names listed below.
Manufacturer Trade Name Usage Notes Digitrax Universal Consist Limited to the number of slots supported by the system. Allows any address Lenz Double Header Limited to 2 locomotives. Allows any address but 00 to be used NCE Old Style Consist Limited to 8 locomotives. Allows any address but 00 to be used EasyDCC Standard Consist Limited to 8 locomotives. Allows any address but 00 to be used
- A Decoder Assisted Consist (DAC), often referred to as Advanced Consist. The NMRA® has set aside CV19 as a dedicated location for consist addresses. If CV19 contains a value other than 0, the locomotive will respond to speed and direction instructions sent to the address in CV19. If CV19 contains zero then it will respond to speed and direction commands sent to the usual short or long decoder address. Since the consist address is a single CV, it is limited to the range of 1 to 127. If you add 128 to the consist address, the locomotive will run backwards (relative to it's normal direction of travel) in the consist. The DAC can be set up in the Consisting tab in the Comprehensive Programmer.

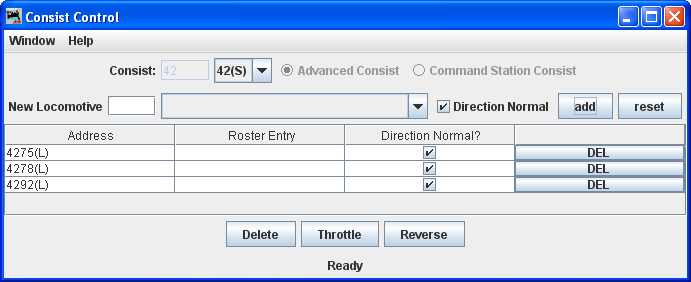

DecoderPro Consisting Tool
The consist tool provides a visual tool for manipulating the Decoder Assisted Consists and , on some command stations, Command Station Assisted Consists.
The Advanced Consist and the Command Station Consist allow you to select either consisting mode if supported by your command station. If not supported the options will be grayed out.
Consist text box: type the consist ID assigned to the locomotives in the consist for Decoder Assisted Consists. For Command Station Consist, this is automatically filled in with the address of the lead locomotive in the consist.
New Locomotive text box : type in a new locomotive address or select from you roster using the drop-down list.
The Direction Normal ? determines the direction of the locomotive travel as forwarded or reverse when the consist is traveling forward. Will be grayed out until the lead locomotive is selected.
The add button adds the locomotive to the consist.
The reset buttton removes alll data for the locomotive.
removes the consist. The list of the consist will have a for each locomotive, allowing you to remove any locomotive from the consist.
deletes the entire consist.
opens a throttle for the consist. Each time that yoiu select throttle the locomotive will be added to the consist.
reverses the direction of the consist.
