DecoderPro® Main Window
Opens the Communications Monitor Window and automatically displays the information that is being sent and received on the communications link between your computer and your DCC system.
Opens the Send prompt with a text box to enter the Command message that will be sent to the DCC system when you click on the Send button.
Opens the SPROG Console window that combines the communications monitor, Send Command and other features into a single user interface.
Get SPROG Firmware Version
Retrieves the SPROG firmware version and displays that information.

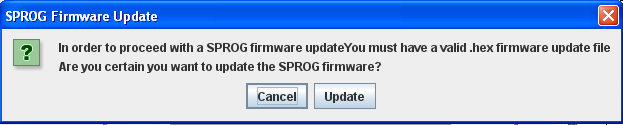

SPROG V3/V4 Firmware Update
Starts the SPROG Firmware Update wizard.
SPROG II Firmware Update
Starts the SPROG II Firmware Update Wizard (basically the same as above)

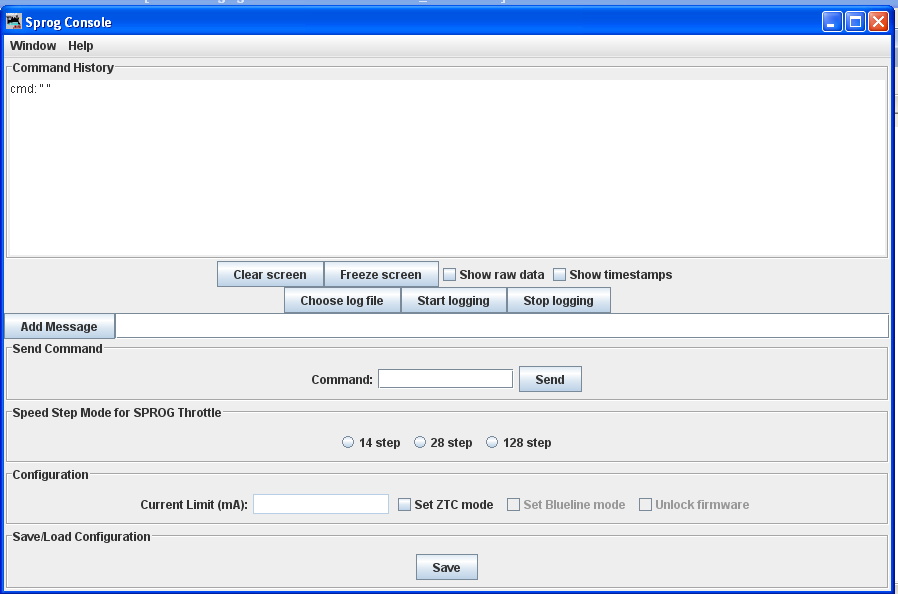

The Console combines the Communications Monitor, Send Command and other features into a single interface.
