Using JMRI® to Operate Trains

Edit Locomotive Attributes

Back to Edit Locomotive

Back to Add Locomotive

Back to Index


To the right of each of the Locomotive attributes (Road, Model, Type, Length, Horsepower, Consist, Owner) dialog to allow you to edit the list of attributes available to us for an Locomotive definition. Use this to , or the available attributes for an locomotive.

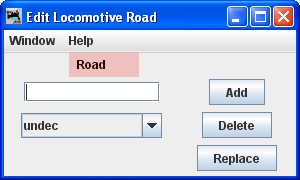

Edit Engine Road

To add a new locomotive attribute, enter the desired text in the text box and press . When you first enter a new locomotive attribute it will show up at the start of the list. Later when your restart the program it will be sorted in the correct order.

To delete an locomotive attribute, select the attribute you want to delete in the menu box and press .

If you need to change a specific locomotive attribute (road, Model, type, etc) in your entire locomotive roster, you can use the found at the bottom right of the edit locomotive attribute panel.

Replace

For example, if you wish to change the locomotive road name attribute "UP" to "UPS" for all of your cars. Press for any of your cars in the Cars panel, and the Replace All? dialog will display with a or option. Enter the new road "UPS" in the text box, select "UP" in the menu box, and press . All cars with "UP" as their road will now have "UPS" as their road name.
