DecoderPro® Main Window

Debug Menu

Previous | Next

Back to Index

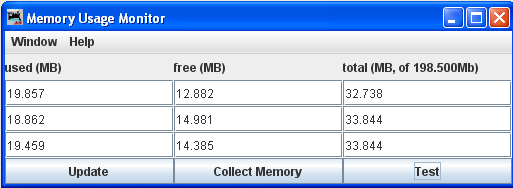

Memory Usage Monitor

Opens the Memory Usage Monitor tool that lets you see how much memory JMRI is using in your computer.

Memory Monitro

There are three columns in the display at the top of the panel:

  • used (MB) - the amount of memory currently in use.
  • free (MB) - the amount of memory currently allocated to JMRI, but not in use, free for later use.
  • total (MB, of 198.500 Mb) - the total memory available to JMRI.

The buttons located at the bottom each column:

  • - puts a new series of values in the bottom row of the memory display and moves the old values up one row.
  • - reduces the amount of used memory to the minimum possible by asking Java to run a garbage collection.
  • - Runs a test of the memory allocation and collection process ( not used by regular users)

sep

Import Decoder File

Opens your operating systems Open dialog to locate a decoder definition file to install in DecoderPro®.

Import Decoder URL

Opens an Input prompt in which you type a URL of a file to download and install a decoder definition file in DecoderPro®.

Input

Recreate Decoder Index

After adding a decoder definition, updates the decoder index that is used by the Programmers in DecoderPro®.

Recreate Roster Index

After importing a new roster file, updates the roster index used by DecoderPro.®

Update Decoder Definitions

Updates the decoder definitions for DecoderPro®

sep

Check XML File

Opens the operating systems Open dialog, and checks the syntax of the selected XML file and either displays an information box with OK or the line number of the error message. Used when you create your own decoder definition.

Validate XML File

Opens the operating systems Open dialog, and Validates the selected XML file against the DTD for that file and either displays an information box with OK or an error message. Used when you create your own decoder definition or modify any XML file used in DecoderPro.

Check Decoder Names

Opens the Open dialog from which you may select a decoder definition file that will be checked for standard names and lists the items contained in the file that do not have standard names. These are not errors, but they will not show up in the Comprehensive Programmer. To display they must be put in a pane in the decoder definition. Used when you create a decoder definition.

Check Programmer Names

Opens the Open dialog from which you may select a programmer definition file that will be checked for standard programmer names and lists the items contained in the file that do not have standard names. This feature is used when developing your custom programmers.

sep

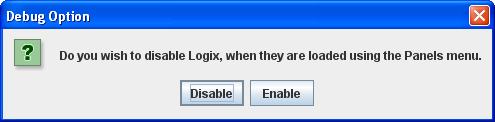

Load Logixs Disabled

Will disable/enable Logixs when loaded by the Panels menu.

logix

Log Message

Opens the Make Log Entry prompt to allow you manually enter an entry in the log file.

log entry

Message: Type your message and then click the to add the message to the log file.

Display Message Log

Displays window with Log messages displayed.

Display Log Categories

Displays the Display Log Categories window which displays a list of all the jmri log message categories.

sep

Virtual Sound Decoder

Manage Virtual Sound Decoders
Manage apparent sound locations of Reporters and other VSD elements.
VSD Preferences

sep

PRICOM arrow

Opens the PRICOM Flash Updater window to facilitate updating the firmware.

sep

USB Input Control

The USB Assignments window lets you connect JMRI sensors and memories to USB input devices on your computer. For example, you could have a JMRI sensor go ACTIVE when you type a key or press a joystick button. You can then use Routes and Logix to use that USB input to control your layout.

USB Device Viewer

Allows user to view USB devices in use.

sep

Rail Driver Throttle

Opens a Throttle window that is designed to work with Rail Driver.

sep

Start JMRI Web Server

Starts a Web Server on your computer. You can access the Index.shtml page using the URL displayed in the dialog.

The JMRI web server is meant to be a quick and easy way for model railroaders, not Masters of the Web, to get a web connection to JMRI up and running.

mini server

sep

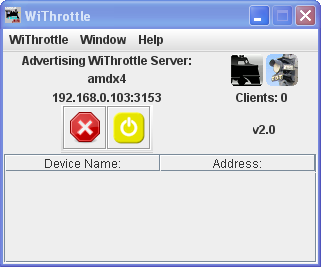

Start Wi Throttle

Opens the WiThrottle window which controls the connection between Wi Throttle and iphone, or ipad touch and JMRI

Additional information on creating a Wi Throttle.

Wi Throttle
