OperationsPro: Edit Location window

The Edit Locations window is opened from the Locations window using an individual Location's Edit button and allows you to edit a specific Location:

Edit Location window menu bar

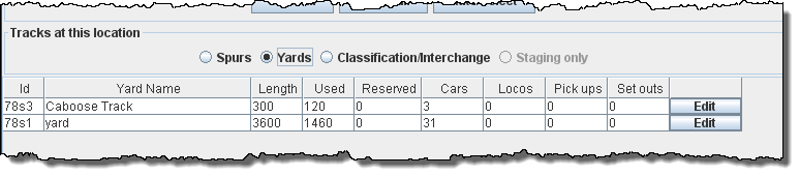

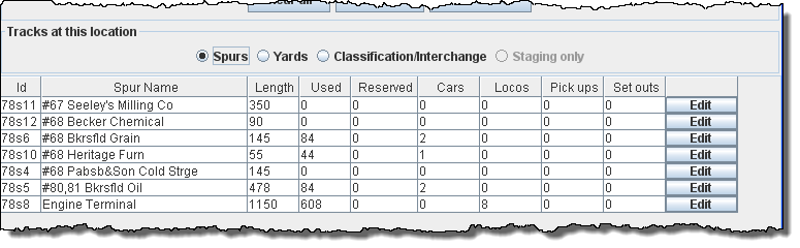

You may select Spurs, Yards, Classification/Interchange or Staging Only (if greyed out, the option is not available at this Location)

No Staging tracks at this Location.
You may edit another Track at this Location using the Edit button column for any of the Tracks shown.
You add a new Track by selecting the Track Type and clicking Add [Type] Track
This window is basically the same as the Add Location window.

At the bottom of the Edit Location pane are two more buttons:

• Clicking the Delete Location button removes this Location from your OperationsPro database.
• The Save Location button saves any changes made on this window to the Location.
