Using JMRI® to Operate Trains

What does OperationsPro do?


Using JMRI® to operate trains allows you to build computer generated car Manifests for your railroad. A Manifest or Switch List details the work that a train will perform during an operations session. The Manifest provides a list of car pick up and set out and shows where the cars are located and where they should be eventually positioned on the railroad. The program allows you to build a Roster of cars, define Locations on the railroad, and Routes for Trains to travel. The Car Roster includes information about every car, including road name, number, type of car, color, length, weight, date built, and owner. Trains are assigned Routes that define Locations where cars can be picked up or set out. Features include the ability to control what car types, road names, and car loads a Location can service, the available track space for a Location, and the maximum length a the train can be between any two Locations on the train's Route.

Locations can have Spurs, Yards, Staging tracks and Interchange tracks. Spurs are used to service industries, and can optionally have custom schedules assigned to them. Trains can be configured to require a caboose. Optionally, Trains can be configured to require a caboose or car with Flashing Rear End Device (FRED). The program generates car Manifests for each train and switch lists for any Location. A Switch List for a particular Location shows the work for all the Trains that visit that Location. The program can also place icons representing Trains on a JMRI Panel. The icon can be taught to move across the panel along with the train from Location to Location.

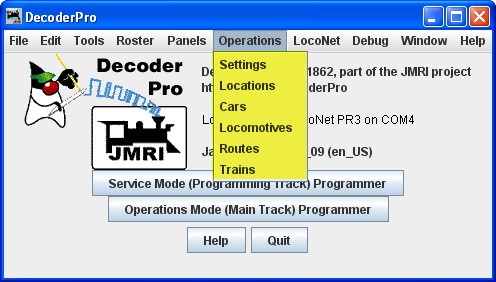

The OperationsPro program is included in the JMRI® suite of tools, so when you install and start up either DecoderPro® or PanelPro you will find OperationsPro menus in the main menu bar under Tools > Operations or as an Operations menu, if enabled in your OperationsPro Settings.

OperationsPro Demo Files

The OperationsPro program provides a set of demo files to help introduce you to the some of the features and capabilities of this program.

Operations in Tools Menu Operations in Main Menubar

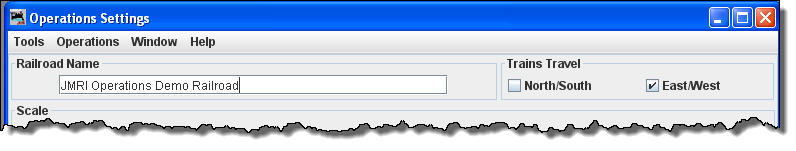

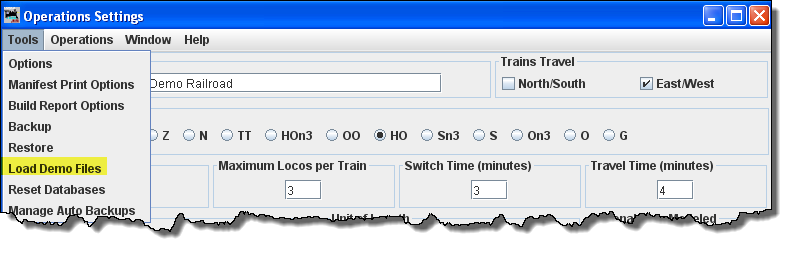

Load the demo files from the Tools menu in the Operations > Settings window, select Load Demo Files; the demo files will load after you restart DecoderPro.

Demo

Selecting Load Demo Files closes DecoderPro® and it must be restarted to open the Demo Railroad.

Demo

The program will create a backup of your current configuration if you have one, and then load the demo files. Restart JMRI to complete the demo load process. To get rid of the demo files, use the Restore function in the Tools menu of the Operations Settings to reload the first backup date, which is the blank entry form.

The program also supplies a simple Panel to show how the Train icons work. Load the Panel before building any Trains by selecting in the main JMRI menu, "Panels->Open Panels ...". A window should appear; open the "Operations" directory and then open the "Operations Demo Panel" xml file.

Demo panel

Quick Start

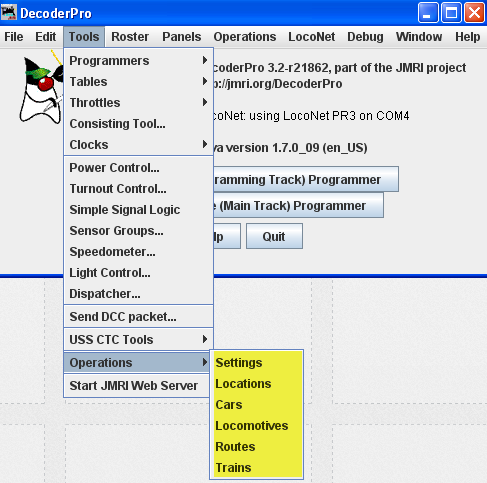

In the Main DecoderPro menu bar select the Tools menu. Near the bottom you will find "Operations".

ops menu

There are six items in the submenu. It is recommended that you start with Settings and work your way down to Trains. We also recommend that when defining your Locations that you at first only use Yard spur tracks; try Staging and Interchange tracks when you're more comfortable with how OperationPro operates.

British Railways

The program supports an alternate set of railway terminology for our British modelers. To use British terminologies, go to the JMRI Advanced Preferences (Edit -> Preferences...), select the Show Advanced Preferences checkbox and select English (United Kingdom) in the "Locale:" menu box. The program will also convert from centimeters to meters when entering wagon, locomotive, or location lengths; just append "cm" to any length.
