DecoderPro3® Main Window

The Roster Table

Back

Back to Index

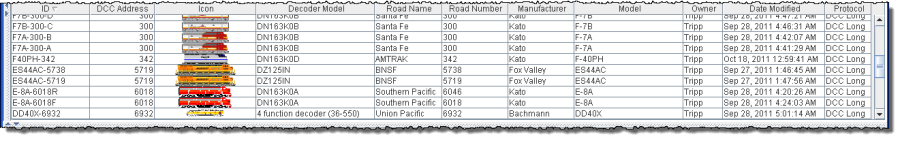

The Roster Table in the main body of DecoderPro3® displays all of the locomotives in your roster or selected roster groups.
SORT by any column by clicking on the column header. Roster above is sorted by DCC addresses.

table

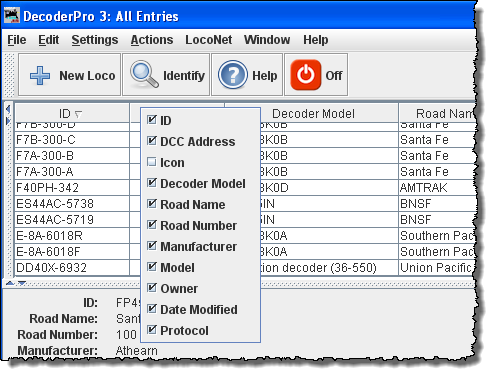

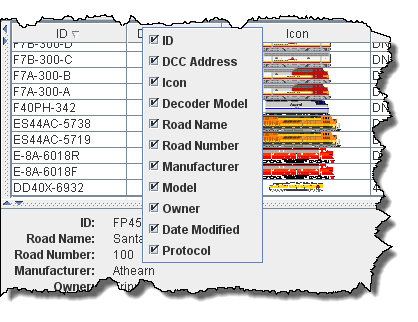

Hide/show any column by right clicking anywhere in the Roster header and checking columns to be displayed and unchecking columns to hide.

table

With columns hidden.
table

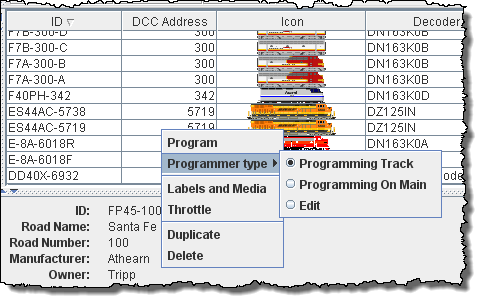

Selecting Actions using Context menu (Right Click ) on locomotive selected. Select the action you would like to perform.

table3

Double Click on Selected locomotive and Programming Window will open.

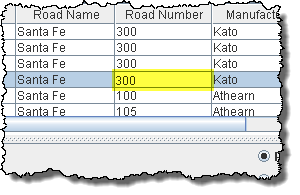

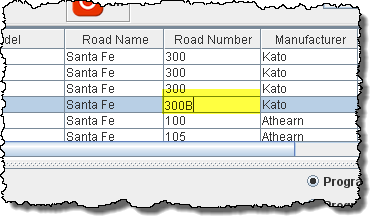

Editing column of a Roster Entry in the table. select locomotive then click on column that you want to edit. Type your change.

The following columns may be edited.
ID Col
Road Name
Road Number
Manufacturer
Model
Owner

edit col edit col

Column sequence may be modified and Saved. Just Drag and Drop the column header to the desired position.

Column Width may be changed by grabbing the divider between the column until the double headed arrow shows and move the arrows to the desired column width.

You may use the same technique to resize panes or the main window.
