Getting Started with DecoderPro3®

How do I start the DecoderPro3® program for New User?

Back


For First Time or totally new Install. Once you have downloaded the JMRI software and installed it, simply open the program in the usual manner for your operating system. An icon for DecoderPro3® should be installed on your Desktop.
icon

DecoderPro3® may be opened by double click on the Desktop icon and the DecoderPro3® initial screen as shown below will be displayed on completion of startup for a brand new install with no settings stored in your computer..

First time install start screen

new

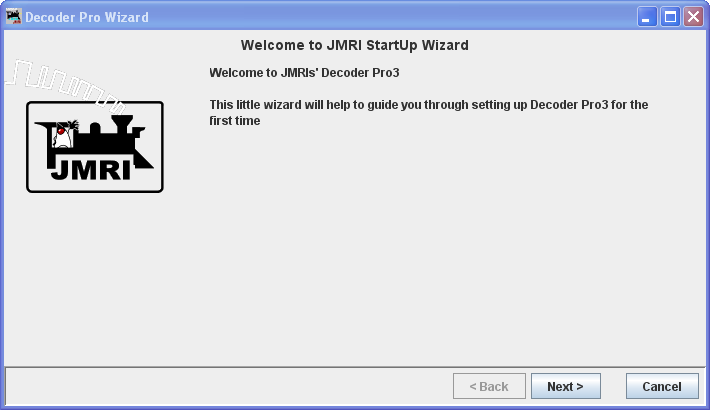

Press the starts the wizard..

wizard

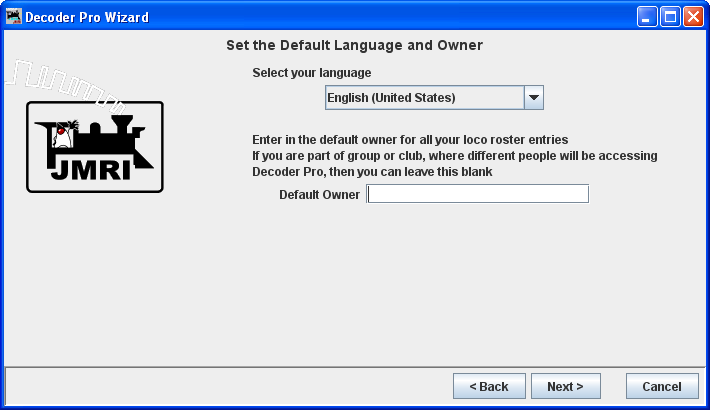

Press the to continue

wizard

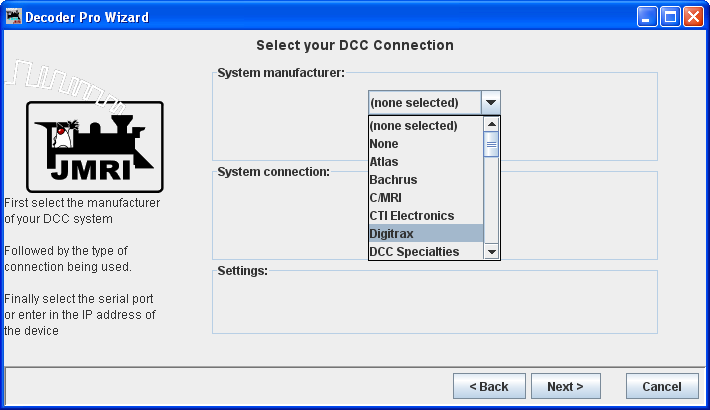

Select your system and other options for your system will be shown.

wizaard

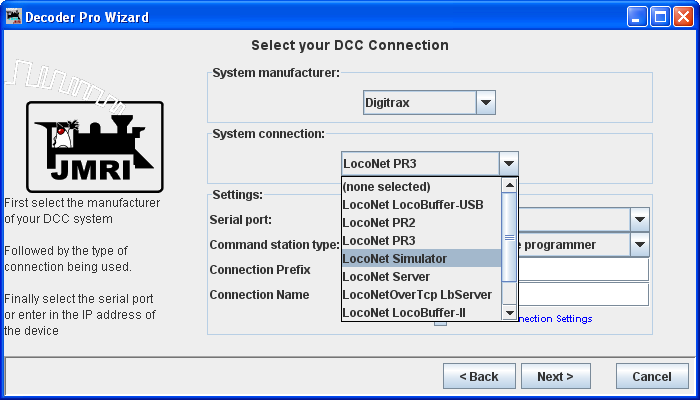

Select your system connection.

wizard

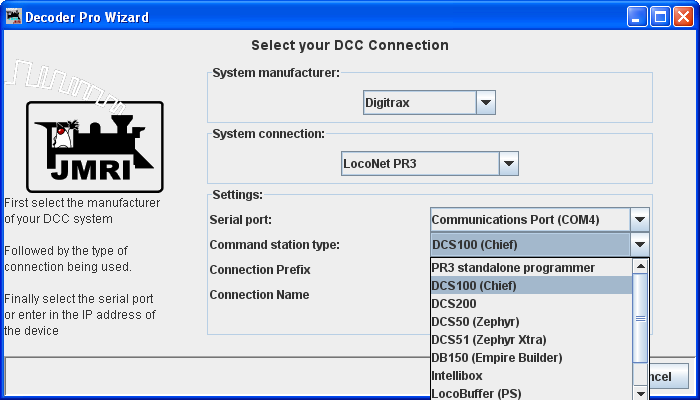

Select your Serial port and Command station type.

wizard

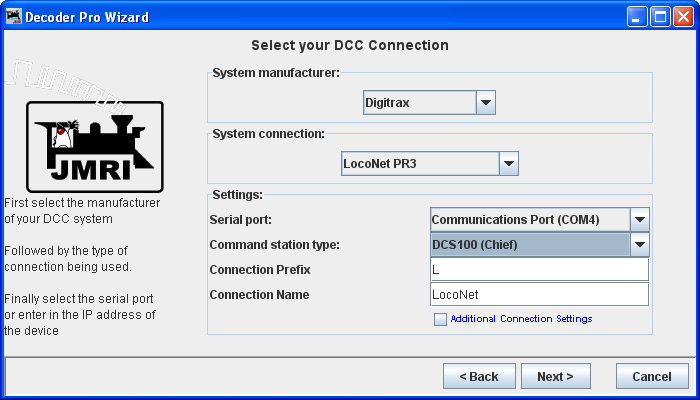

Next Connection Prefix and Connection Name, At this time leave as default.

Press the

wizard

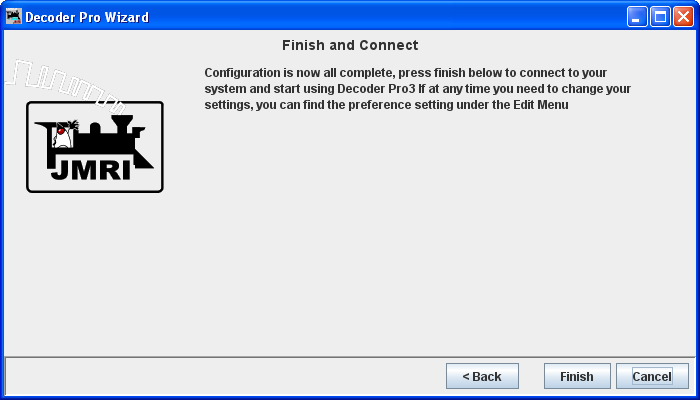

Press the

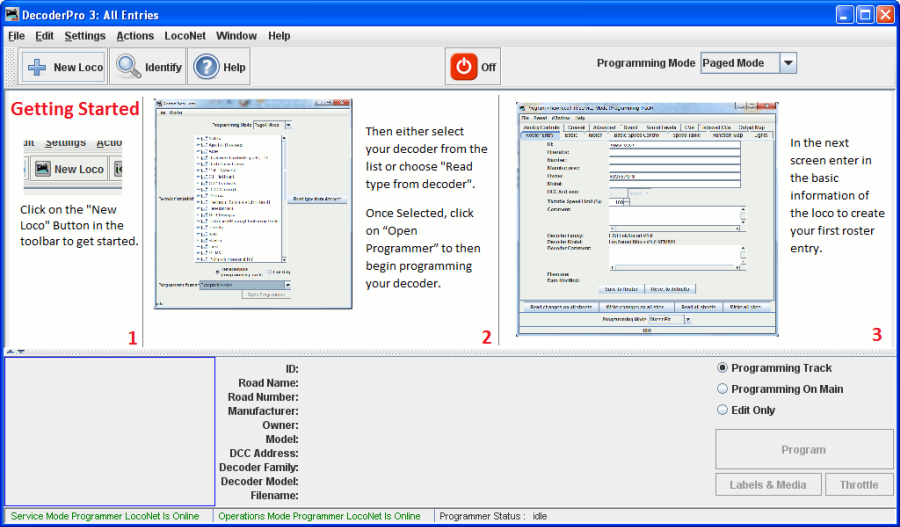

DecoderPro3® main window is displayed with instructions for Getting Started

new start

You may want to set up the other preferences at this time, if so go to Preferences screen will come up that allows you to set up the system for your particular configuration.
