DecoderPro® Main Window

XpressNet Menu

Back to Index


XpressNet Monitor

Opens the Communications Monitor Window and automatically displays the information that is being sent and received on the communications link between your computer and your DCC system.

XpressNet System Information

Opens the XPressNet System Information Dialog.

Send XpressNet Command

Opens the Send XpressNet Packet prompt so that you can type in a Packet: and click on the to transmit via XpressNet to your system.

Send Command

separator

Command Station Database Manager

Opens the Command Station Stack Monitor window that allows you to monitor the status of the command station stack (database).

LI101 Configuration Manager

Open the LI101 Configuration Utility Window.

LZ100 Configuration Manager

Open the LV100 Configuration Manager Window

LZV100 Configuration Manager

Open the LZV100 Configuration Manager Window

LV102 Configuration Manager

Open the LV102 Configuration Manager Window.

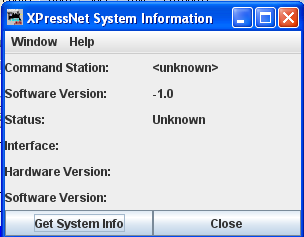

XPressNet System Information Dialog

Click on the to query the system (Lenz or other) for system information that will be displayed in the dialog. Click on to close the dialog.

System Information

Back

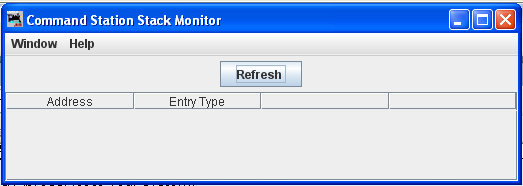

Command Station Stack Monitor

Click the to update the display to the current information.

Database

Back

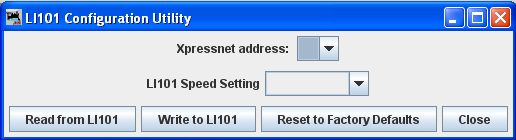

LI101 Configuration Utility Window

configuration

Back

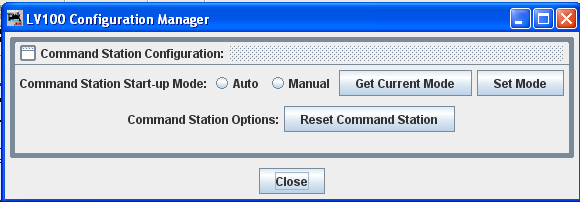

LV100 Configuration Manager Window

configuration

Back

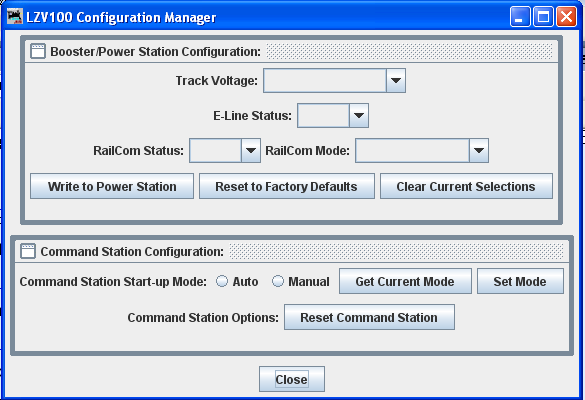

LZV100 Configuration Manager Window

configuration

Back

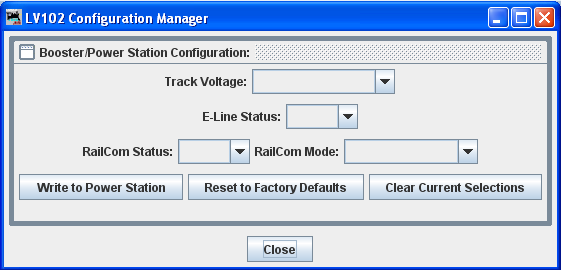

LV102 Configuration Manager Window

configuration

Back
