DecoderPro® Main Window

Help Menu

Previous

Back to Index


Window Help...

Displays help that for the current window.

General Help...

Displays general information about DecoderPro and other JMRI programs.

License...

Displays the License agreement under which JMRI operates.

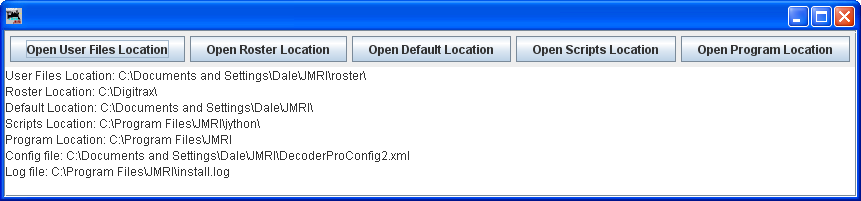

Locations...

Opens an information box showing the location of JMRI programs and files related to DecoderPro.

Location

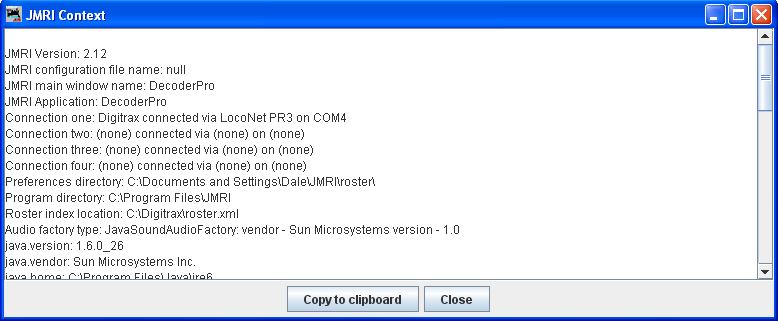

Context...

Opens the JMRI Context window that shows the configuration setting for your DecoderPro installation.

Context

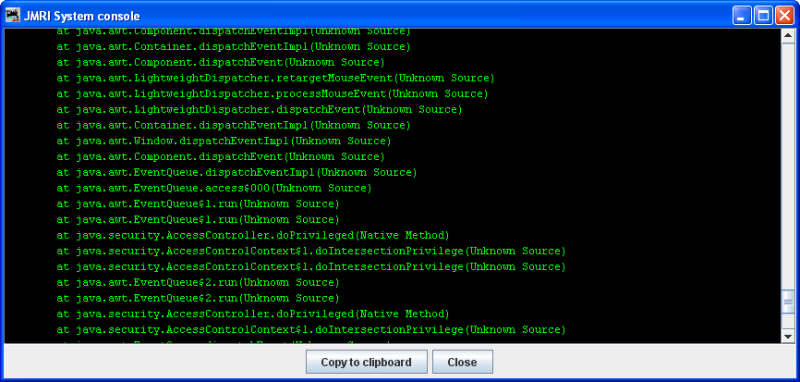

System Console...

Opens the JMRI System console window that displays the Java Execution activity. Now Right Click Context menu to copy to clipboard, wrap messages, change color scheme.

console

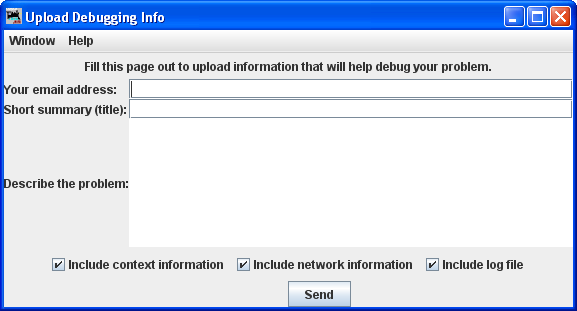

Upload Debugging Info...

Opens the Upload Debugging Info Window

help

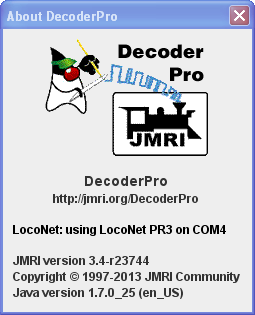

About DecoderPro

Opens the Credits and Version Window.

about
