Using JMRI® to Operate Trains

Operations Routes Menu Bar

Back

Back to Index

This menu bar is common to the Routes window, Add Route window and Edit Route Window.

routes menu

Tools

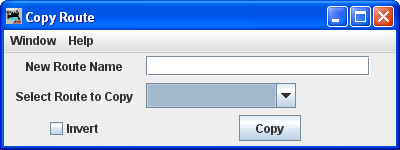

Copy Route opens the Route Copy dialog. This allows you to copy an existing Route.

Type the New Route Name

Select Route to Copy this Route will be copied and saved with the new name.

Invert will reverse the sequence of the Route when copied.

press to copy the Route into your Route file.

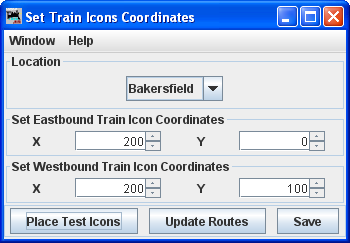

Set Train Icons Coordinates
This tool is used to set the default X and Y coordinates of your Train Icons for each Location. The tool allows you to specify the icon coordinates based on the Trains direction. You can also update all of your existing Routes and Locations with these new coordinates. As an alternative, you can use a Route's Tools --> Set Train Icon Coordinates for this Route to create coordinates unique to a specific Route.

Location
Select Location from

Set Eastbound Train Icon Coordinates

Set Westbound Train Icon Coordinates

Set the X, Y coordinates where you want the icon located at the selected Location,

check location on your layout

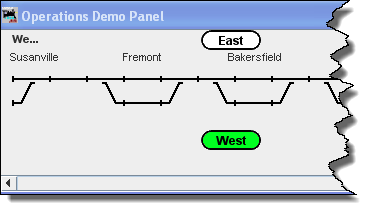

Demo Panel

update the Routes with icon data
saves the icon data in the Routes files

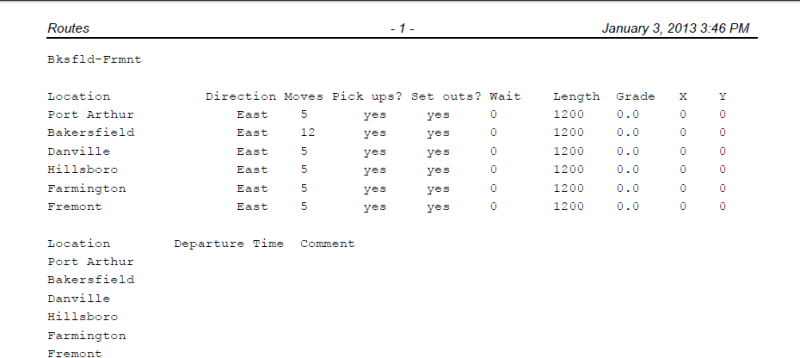

Print

Preview

Operations menu (same as main OperationsPro menu)

Window - the standard JMRI® Window menu.

Help - the standard JMRI® Help menu.
