Using JMRI® to Operate Trains

Operations Locomotive Window

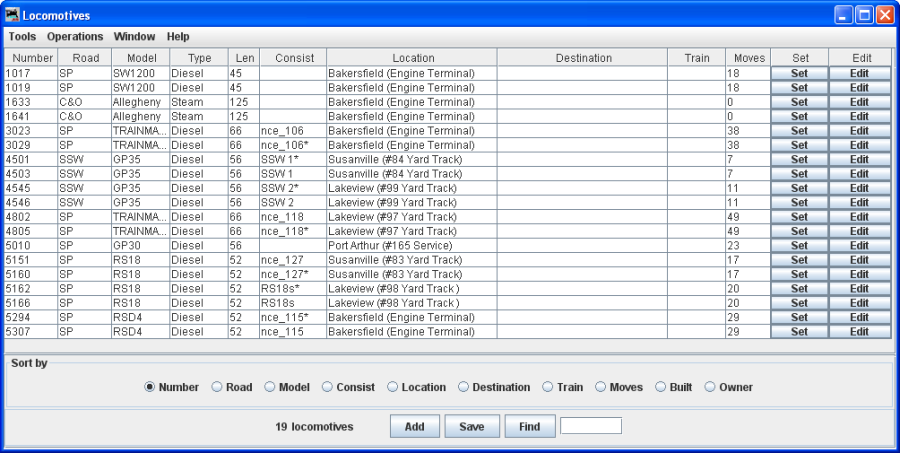

The Locomotives window allows you to edit your engine roster. You can enter an engine's number, road, model, type, and length. You can optionally add the engine's build date and owner. If you want a group of engines to be assigned as a unit, you can create a "consist". The engine type is used by the program to determine where engines are picked up and or stored at the various locations on your layout. Some of default engine types are electric, diesel, gas turbine, and steam.

Menu Bar

Tools

• Roster
  • Import from JMRI roster
  • Import from file
  • Export to file

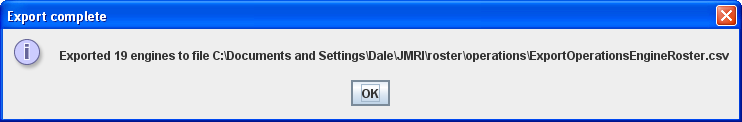

  Displays the Export complete dialog. The file is exported automatically as a .csv file.

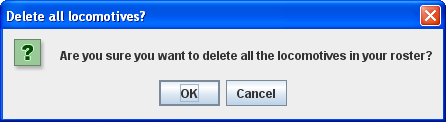

  • Delete all locomotives -- Opens the Delete all locomotives? OK will delete all locomotives in the Operations Roster , cancel will abort the deletion.

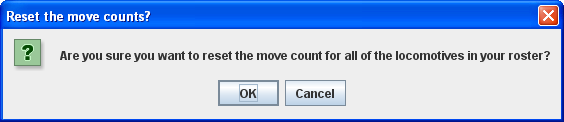

  • Reset move count all locomotives -- allows resetting all locomotive move counts.

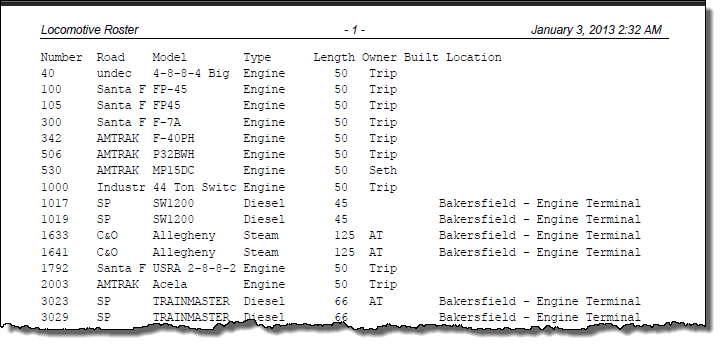

  • Print -- Opens your computers Print window and will print your locomotive roster.

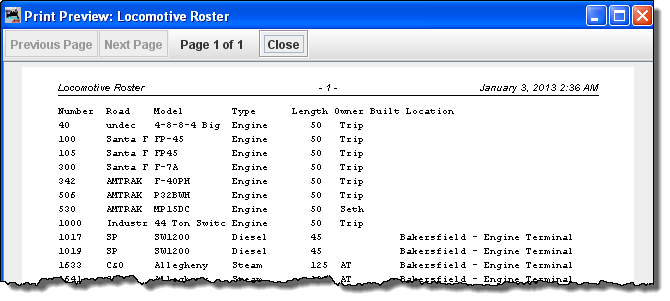

  • Preview -- Opens your computers Print Preview window and shows the preview of your locomotive roster.



Operations -- same as DecoderPro® Operations menu

Window -- same as other JMRI® menus.

Help -- same as other JMRI® menus.

Body of window

Sort by -- select the radio button for the attribute you wish to sort by.

when selected opens the Add Locomotive window.

Saves the locomotive roster to disk.

Locate a locomotive in your roster, when you type the road number into the text box.
