VSDecoder Manager

Back


The VSDecoder Manager window provides a consolidated window to manage all the VSDecoders running on a system. Each active VSDecoder apepars as a "control panel" within the Manager window, and all of the key controls required are at the user's fingertips.

Using the VSDecoder Manager

Launch the VSDecoder Manager by selecting "Virtual Sound Decoder -> VSDecoder Manager" from the Debug menu. A simple window will appear, with a blank panel, a volume/mute control, and an "Add Decoder" button.

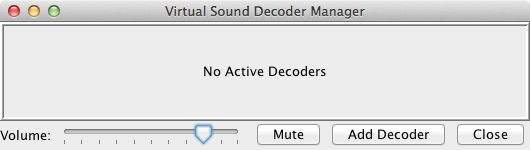

Empty VSDecoder Manager

To create a new VSDecoder, click "Add Decoder". This will open a Configuration Dialog ("Config Dialog") where you can choose a locomotive and a sound profile. Once you close the Config Dialog, a new Control Panel will be added to the VSDecoder Manager window.

Each time you add a VSDecoder, a new Control Panel will be added to the main window. You can remove Control Panels by clicking the "Delete" button.

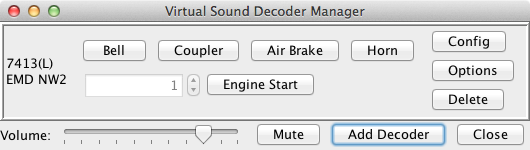

VSDecoder Manager

Once you have added a Control Panel, the VSDecoder will respond to throttle and function button presses from a throttle assigned to the locomotive's addres, or to button presses on the Control Panel.

Configuration Dialog

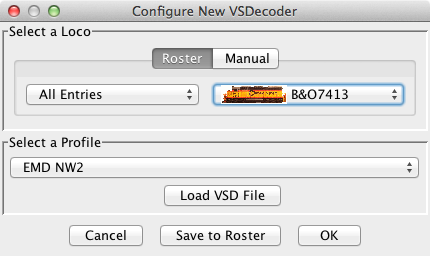

Config Dialog

The Configuration Dialog allows you to create a new VSDecoder. Choose a locomotive from the Roster or set an Address manually. Then select a Profile from the Profile Select combo box. To load Profiles, click the "Load VSD File" button or choose File->Load VSD File from the menu bar.

Note: You must have a Locomotive assigned and a Profile selected before the "OK" button is enabled.

You can save a Profile to a Roster Entry so that it is automatically configured when the Roster Entry is selected. To do this:

  1. Select the Roster Entry
  2. Load a VSD File and choose a Profile
  3. Click the "Save to Roster" button

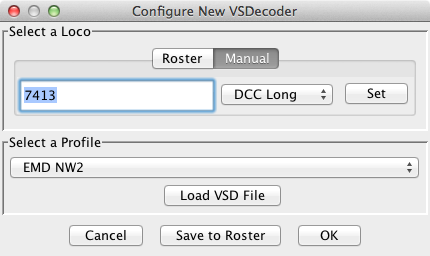

To manually set a locomotive address:

  1. Choose the "Manual" tab in the "Select a Loco" section
  2. Enter an address and choose a protocol
  3. Click the "Set" button
Config Dialog

Control Panel

Each VSDecoder gets a Control Panel within the VSDecoder Manager window. The Control Panel is divided into three sections:

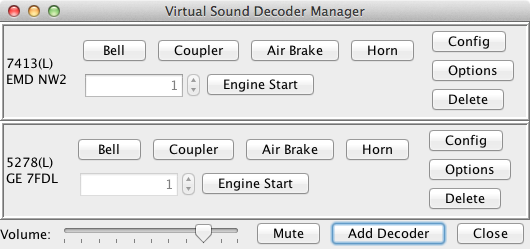

Two Control Panels

The left section shows the assigned Loco Address and Profile Name. The center section provides buttons for activating sounds. The right section has buttons for controlling or deleting the Control Panel.

Sounds can also be activated by a throttle assigned to the same address as the VSDecoder.

Volume / Mute control

At the bottom of the window is a master volume slider and mute button. These control the overall sound level for all VSDecoders within the VSDecoder Manager.

Menu Items
File->Load VSD File

Load the Sound Profiles from a VSD File. Profiles loaded will be available to any currently running or newly launched VSDecoder. This is the same action as the "load VSD File" button on the Config Dialog.

Edit->VSDecoder Preferences

Set preferences for VSDecoder operation. See VSDecoder Preferences for details.
