OpenLCB Hub Control

OpenLCB Hub Control

The "OpenLCB Hub Control" tool enables a physical OpenLCB connection to be shared on a Network Connection.

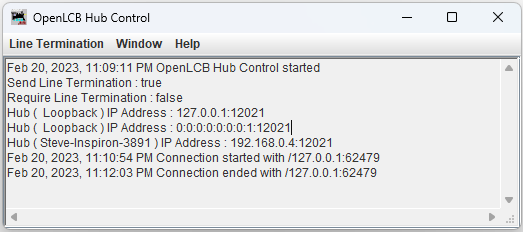

The window displays the IP address and port of the Hub, along with client connection and disconnections.

If IP addresses are flagged as Loopback or LinkLocal, this is indicated.

The OpenLCB Hub can be opened by adding as a system startup action.

This page can be opened from the Hub Control via Help > Window Help .

Line Terminations

You should not normally need to change these settings, however if you do so, you are advised to restart JMRI.

Send Line Termination

Hub sends CAN Frames in the GridConnect Serial format, and when Send Line Termination is enabled ( OpenLCB default ), is followed by a line termination character ( CR/LF ).

Require Line Termination

When unchecked ( default ), Hub reads the GridConnect content between the start of the Serial Format " : ", and end of format " ; " characters.
Any other characters, including line termination characters are silently ignored.

When enabled, Hub receives CAN Frames whenever a line termination is received in the network stream.

Also see

The Grid Connect Serial specification is the documentation for their CANUSB Interface, see section 2.7.1 Message String Syntax in the pdf at
Line terminations can be enabled / disabled in this USB devices output via a device setting.

The CBUS® Hub Control borrows code extensively from OpenLCB Hub Control.
