Add a new Sensor

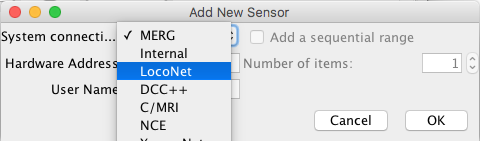

When adding a Sensor, from the "System connection:" drop down list select the hardware connection this Sensor is attached to.
Enter a valid address for the Sensor (look at
the Tooltip for accepted input options per system).
If desired, enter a User Name which can be anything you
wish to describe the Sensor.
Finish by clicking the "OK" button.

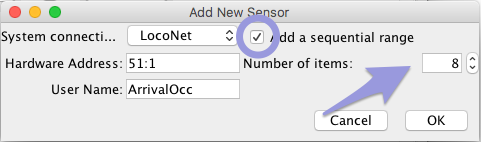

Creating A Number of Sensors
It is also possible to create a number of Sensors in one
Where supported the "Add a sequential range" check box will be enabled.
Checking this box will enable
the "Number of items" spinner. Click the small arrows
up or down to set the number of Sensors you wish to add.
Clicking "OK" will then create that
number of sequential Sensors in the table.
If a User Name has been entered, a number will be added to the end of the name to keep each Sensor User Name unique.
Edit a Sensor
Clicking on [Edit] in any line of the Sensor Table opens the Edit Sensor pane to edit the following:
This tab lets you see and change basic information about the Sensor as entered on its creation:
- User Name
- a Comment on the sensor (free text to keep a note)
- a checkbox to use this Sensor as Inverted (Inactive will be interpreted as Active and vice versa)

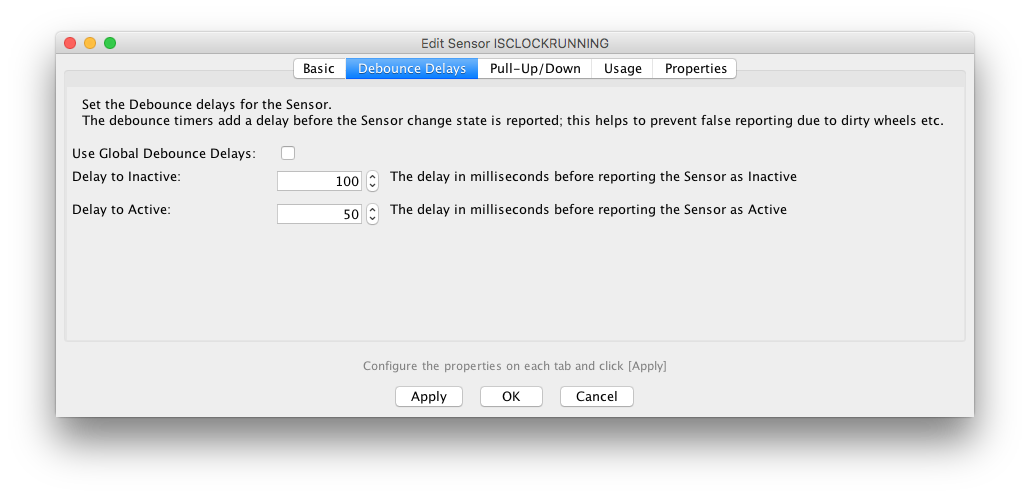

This tab lets you see and change Sensor specific values for the Sensor Debounce Delay.
This tab lets you set whether your hardware has a puul-up or pull-down resistor installed over the Sensor input.
This is an information field, showing where you have the Sensor displayed on a Panel.
Custom properties, only advised for advanced users.
Hardware Specific Information
Please refer to our summary of allowed entry patterns per connection.
NCE AIU Number to JMRI Sensor MappingThe NCE Auxiliary Input Unit (or AIU) allows the NCE command station to check the status of inputs from the layout. These are referenced in JMRI as Sensors with names like "NS785". "NS" means "NCE Sensor", and "785" is the number of a specific Sensor input.
The hardware address can be entered in two different ways:
Enter in the AIU Cab Address followed by the Pin Number separated by a ":"
So for a sensor on AIU Cab Address 50, pin 2 you would enter into the Hardware Address field :
The Sensor number can also be found and entered into the hardware address field by using the following formula:
Sensor ID = (AIU Cab Address - 1) * 16 + (Pin Number On AIU) -1
For example: The AIU cab address is set to 50 and one of the BD20s is connected to pin 2. Therefore the Sensor ID would be:
Sensor ID = (50 - 1) * 16 + (2) -1
Sensor ID = 785
LocoNet Sensor to JMRI Sensor Mapping
LocoNet Sensor addresses are either simply entered as an ordinal
number or made up from two different parts: the Board number and
the Channel number.
Sensors can also be configured from the Turnout addresses for the Aux & Switch input.
The hardware address can be entered in a number of different ways:
If you know the Sensor number, enter it in the Hardware Address field.
Enter the board number, followed by the channel number separated by a ":"
So for a Sensor on board 11, channel 1 you would enter into the Hardware Address field:
For Sensors attached to Turnouts, you enter into the hardware address field "T:" followed by the Turnout number. This will add the Aux input associated with the Turnout. To add both the Aux and the Switch input, check "Add a sequential range" and set the number to add to 2.
So for a Sensor attached to Turnout 81 you would enter the following:
The third method is to calculate the address of the Sensor and add it manually into the hardware address field using the following method:
If you want to calculate the address of a BDL168 input, you can use
number = 16 * (board number) + (channel number) - 16
where "channel number" runs from 1 to 16. For example, the first circuit (number 1) on board 11 has number:as we saw in the example above.
number = 16 * (11) + (1) - 16 = 161
If you want to calculate the address of a DS54 aux input, use:
number = 2 * (turnout number - 1) + 1
For example, the aux input associated with Turnout 81 has number:
number = 2 * (81 - 1) + 1 = 161
If it's the switch input, you add one more to that:
number = 2 * (turnout number - 1) + 2
For example, the switch input associated with Turnout 12 has number:
number = 2 * ( 12 - 1 ) + 2 = 24
Lenz XpressNet Sensor to JMRI Sensor Mapping
XpressNet Sensor addresses are made up from two different parts: the Feedback Encoder address and Contact.
The hardware address can be entered in a number of different ways
Enter in the encoder address, followed by the contact
separated by a ":"
So for a Sensor on Feedback Encoder address 99, Contact 3 you would enter into the Hardware Address field:
If you wish to calculate the address of the Sensor, subtract 1 from the Feedback Encoder's address, multiply that result by 8, and then add the input number you are using.
For Example, if you are using Contact 3 on a Feedback Encoder with address 99, 99 - 1 = 98. 98*8=784. 784+3=787.
The feedback address you will use is 787.
CBUS® to JMRI Sensor Mapping
Short event 18 on and off : "+18".
Short event 18 on, short event 21 off : "+18;-21".
Long event Node 2 Event 18 on and off : "+N2E18".
CAN frame hex string : "X9000020012;X91FFFFFFFE".
Maple and C/MRI Sensor to JMRI Sensor Mapping
Maple and C/MRI sensor addresses are made up from two different parts: a Node Id and Pin/Sensor Id.
The hardware address can be entered in a number of different ways:
Enter the Node Id, followed by the Sensor Id, separated
by a ":". This method can also be used for the
So for a Sensor on Node 2, pin 3 you would enter the following into the hardware address field:
Another method of adding the Sensor address is to use the following formula:Node Id x 1000 + pin.
So for a Sensor on Node 2, pin 3
(2x1000)+3 = 2003
To use the alternative/extended addressing scheme, refer to your C/MRI hardware connection guide.
Grapevine Sensor to JMRI Sensor Mapping
There are three separate types of Grapevine Sensors:
- Advanced Serial Detectors
Up to three Advanced Serial Detector boards can be
attached to a Grapevine Node. Each provides eight
occupancy detectors, and associates a motion detector
with each of those.
Board Occupancy Motion Master 1-8 9-16 Slave 1 17-24 25-32 Slave 2 33-40 41-48
- Original Serial Sensors
- Occupancy Sensors on the original serial boards replace Sensors attached through advanced boards at addresses 1 to 8. There are no motion sensors in this case.
- Parallel Sensors
- The parallel sensors, connectors on the Grapevine node itself appear as JMRI sensors 101 to 108 on the node. If the optional second bank of serial sensors are present, they appear as sensors 109 to 116 on the node.
