Getting Started with DecoderPro®

How do I set up my preferences?

Previous

Back to Index


The current JMRI Preferences Help is here.

Click on the Edit menu and then Preferences... to open the Preferences window. On Mac OS X choose Preferences... from the DecoderPro application menu. (This window may open automatically the first time you run the program.)

As a first time user the most important information is the Connections screen where you describe how the computer will talk to the command station. Most of rest you can leave at the initial or "default" settings until you find a need to change things to suit your fancy.

Most importantly, you must click [Save] to finalize your settings and then re-start the program to have them take effect.

The Preferences panel provides access to the basic configuration information to connect your computer to your DCC system. You will be using that system to actually program and operate trains equipped with DCC decoders.

The panel is split into two panes: on the left side is a list of preference groups that may be set. Clicking on one of the items opens the options that may be set in the right side pane. The Connections tab was selected in the following screen shot:

preferences
Connections Allows you to select the system connection that you are using for controlling DCC and the connection to your computer.
Defaults Shows system default settings
File Locations Set default location for saving User files and Script Files
Start Up Allows you to set Actions, Buttons, Files and Scripts that run at Start Up
Display Allows you to select your computer display mode
Messages Set default actions for system message when displayed
Roster Allows you to set your default Programmer and roster location
Throttle Allows you to set up you Throttle preferences
Wi Throttle Allows you to set up a Wi Throttle settings
JSON Server Opens JSON Server Prefence settings pane
WebServer Sets up the Decoder Pro® WebServer

Now we will set up preferences for the JMRI environment with your command station.

I am using a Digitrax Super Chief Command Station (radio) interfaced to the computer via LocoNet, PR3 (MS100 mode) and USB port. I keep master roster on the System Drive.

Top

Start Up

Start Up preferences allow windows and files to be opened, scripts to be run, and additional buttons to be placed on the main window when the application starts.

Click the Add ▾ button and select the type of start up action to add. The new action will be added last.

Start up action order is important. In most cases, scripts should be the last items in the start up order. Start up order can be changed by selecting a start up item and moving it up or down in the list.

Top

Display Panes

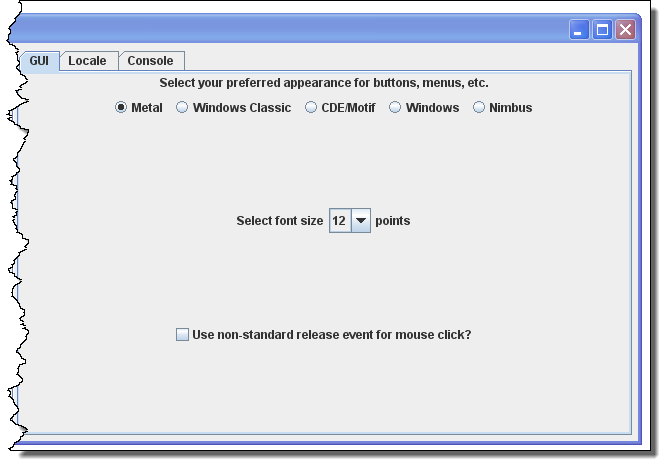

GUI Tab

GUI

Select your preferred appearance for buttons, menus, etc. Metal
Windows Classic
CDE/Motif
Windows
Nimbus
Select font size in points Select font size [12] points
If you experience clicks not working, select Use non-standard release event for mouse click?

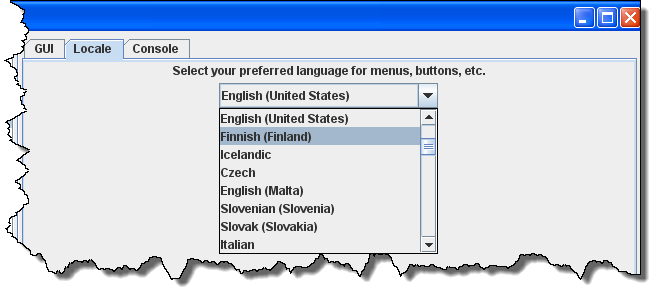

Locale Tab

locale

Drop-down list to select your location and language

Console Tab

console

Display settings for the JMRI System Console.

Top

Messages Panes

The Tabs and selections can be used to set how and when messages are displayed.

messages

Top

Roster Panes

Programmer pane

Used to set the preferred decoder programmer.

progrmmer

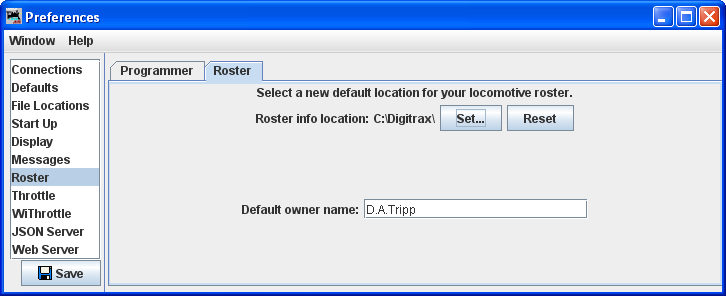

Roster Pane

You may set the default location of the locomotive roster and the default owners name.

roster

Note that I do not use the default roster file location. This location is a Network accessible location for my three systems and WiFi connection.

Top

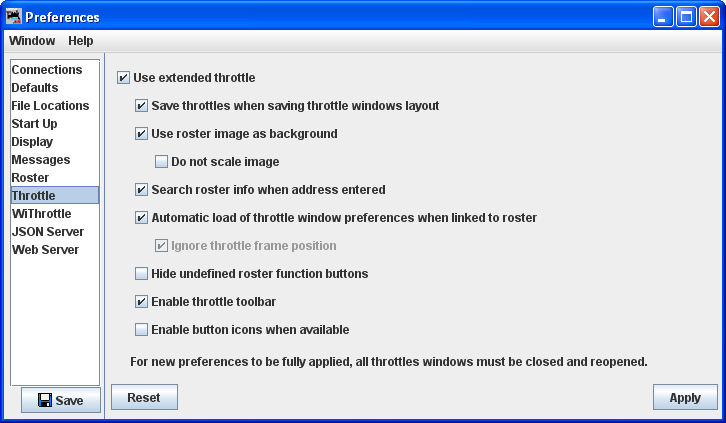

Throttle Pane

Select throttle startup conditions, shown are defaults, but you may change the settings.

throttle

Top

WiThrottle Pane

This pane allows WiThrottle users to customize the setup.

Wi Throttle

Top

JSON Server Pane

json

Top

Web Server Pane

Use this pane to set up MiniServer if you are using it.

mini server

Top

Before you exit the Preferences, click the [Save] button to save all your selections.
You must restart DecoderPro for Preferences to take effect.
