java.lang.Object
- jmri.jmrix.AbstractMRTrafficController

Direct Known Subclasses:

AbstractCanTrafficController, AbstractMRNodeTrafficController, Dcc4PcTrafficController, DCCppTrafficController, EasyDccTrafficController, EcosTrafficController, JMRIClientTrafficController, MarklinTrafficController, NceTrafficController, RfidTrafficController, SerialTrafficController, SerialTrafficController, SRCPTrafficController, TamsTrafficController, XNetTrafficController, Z21TrafficController
```
public abstract class AbstractMRTrafficController
extends java.lang.Object
```
Abstract base for TrafficControllers in a Message/Reply protocol.
Two threads are used for the actual communication. The "Transmit" thread handles pushing characters to the port, and also changing the mode. The "Receive" thread converts characters from the input stream into replies.
The constructor registers a shutdown task to trigger the necessary cleanup code

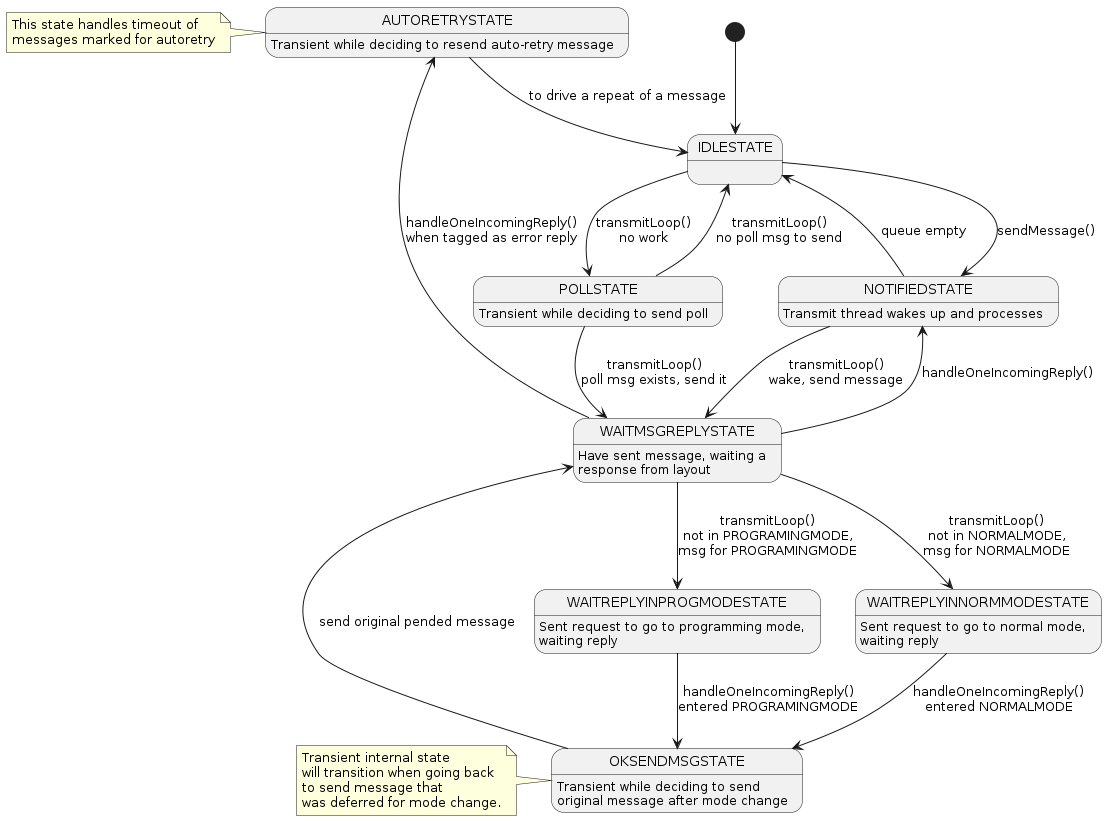

The internal state machine handles changes of mode, automatic retry of certain messages, time outs, and sending poll messages when otherwise idle.
"Mode" refers to the state of the command station communications. "Normal" and "Programming" are the two modes, used if the command station requires messages to go back and forth between them.

The key methods for the basic operation are:
- If needed for formatting outbound messages, addHeaderToOutput(byte[], AbstractMRMessage) and addTrailerToOutput(byte[], int, AbstractMRMessage)
- newReply() creates an empty reply message (of the proper concrete type) to fill with incoming data
- The endOfMessage(AbstractMRReply) method is used to parse incoming messages. If it needs information on e.g. the last message sent, that can be stored in member variables by forwardToPort(AbstractMRMessage, AbstractMRListener).
- forwardMessage(AbstractMRListener, AbstractMRMessage) and forwardReply(AbstractMRListener, AbstractMRReply) handle forwarding of specific types of objects
If your command station requires messages to go in and out of "programming mode", those should be provided by enterProgMode() and enterNormalMode().
If you want to poll for information when the line is otherwise idle, implement pollMessage() and pollReplyHandler().

Nested Class Summary

Nested Classes
Modifier and Type	Class	Description
`protected static class`	`AbstractMRTrafficController.RcvNotifier`	Internal class to remember the Reply object and destination listener with a reply is received.
`protected static class`	`AbstractMRTrafficController.XmtNotifier`	Internal class to remember the Message object and destination listener when a message is queued for notification.

Field Summary

Fields
Modifier and Type	Field	Description
`protected boolean`	`allowUnexpectedReply`
`static int`	`AUTORETRYSTATE`
`protected java.util.Vector<AbstractMRListener>`	`cmdListeners`
`protected boolean`	`connectionError`
`AbstractPortController`	`controller`
`protected boolean`	`flushReceiveChars`
`static int`	`IDLESTATE`
`protected java.io.DataInputStream`	`istream`
`protected java.util.LinkedList<AbstractMRListener>`	`listenerQueue`
`protected int`	`maxRcvExceptionCount`
`protected int`	`mCurrentMode`
`protected int`	`mCurrentState`
`protected AbstractMRListener`	`mLastSender`
`protected java.util.LinkedList<AbstractMRMessage>`	`msgQueue`	Messages to be transmitted.
`protected int`	`mWaitBeforePoll`
`static int`	`NORMALMODE`
`static int`	`NOTIFIEDSTATE`
`static int`	`OKSENDMSGSTATE`
`protected java.io.OutputStream`	`ostream`
`static int`	`POLLSTATE`
`static int`	`PROGRAMINGMODE`
`protected boolean`	`rcvException`
`protected java.lang.Thread`	`rcvThread`
`protected boolean`	`replyInDispatch`
`protected boolean`	`threadStopRequest`	Flag that threads should terminate as soon as they can.
`protected boolean`	`timeoutFlag`
`protected int`	`timeouts`
`static int`	`WAITMSGREPLYSTATE`
`static int`	`WAITREPLYINNORMMODESTATE`
`static int`	`WAITREPLYINPROGMODESTATE`
`protected long`	`waitTimePoll`
`protected boolean`	`xmtException`
`protected java.lang.Runnable`	`xmtRunnable`
`protected java.lang.Thread`	`xmtThread`

Constructor Summary

Constructors
Constructor Description

AbstractMRTrafficController()
Create a new unnamed MRTrafficController.

Method Summary

All Methods Instance Methods Abstract Methods Concrete Methods
Modifier and Type	Method	Description
`protected void`	`addConsoleListener(AbstractMRListener l)`	Add a Listener to start of the Listener list.
`protected int`	`addHeaderToOutput(byte[] msg, AbstractMRMessage m)`	Add header to the outgoing byte stream.
`protected void`	`addListener(AbstractMRListener l)`	Add a Listener to the Listener list.
`protected void`	`addTrailerToOutput(byte[] msg, int offset, AbstractMRMessage m)`	Add trailer to the outgoing byte stream.
`protected boolean`	`canReceive()`	Override in the system specific code if necessary
`protected void`	`connectionWarn()`
`void`	`connectPort(AbstractPortController p)`	Make connection to an existing PortController object.
`void`	`disconnectPort(AbstractPortController p)`	Break connection to existing PortController object.
`protected void`	`distributeReply(java.lang.Runnable r)`	Executes a reply distribution action on the appropriate thread for JMRI.
`protected abstract boolean`	`endOfMessage(AbstractMRReply r)`
`protected abstract AbstractMRMessage`	`enterNormalMode()`	Sets the system to normal mode during programming while in IDLESTATE.
`protected abstract AbstractMRMessage`	`enterProgMode()`	Set the system to programming mode.
`protected int`	`enterProgModeDelayTime()`	Get the delay (wait time) after enabling the programming track.
`protected abstract void`	`forwardMessage(AbstractMRListener client, AbstractMRMessage m)`	Implement this to forward a specific message type to a protocol-specific listener interface.
`protected abstract void`	`forwardReply(AbstractMRListener client, AbstractMRReply m)`
`protected void`	`forwardToPort(AbstractMRMessage m, AbstractMRListener reply)`	Actually transmit the next message to the port.
`AbstractMRListener`	`getLastSender()`	for testing purposes, let us be able to find out what the last sender was.
`java.lang.String`	`getPortName()`	Get the port name for this connection from the TrafficController.
`protected boolean`	`getSynchronizeRx()`
`void`	`handleOneIncomingReply()`	Handle each reply when complete.
`protected void`	`handleTimeout(AbstractMRMessage msg, AbstractMRListener l)`
`boolean`	`hasTimeouts()`	Determine if the interface is down.
`protected int`	`lengthOfByteStream(AbstractMRMessage m)`	Determine how many bytes the entire message will take, including space for header and trailer.
`protected void`	`loadChars(AbstractMRReply msg, java.io.DataInputStream istream)`	Get characters from the input source, and file a message.
`protected AbstractMRTrafficController.RcvNotifier`	`newRcvNotifier(AbstractMRReply pMsg, AbstractMRListener pDest, AbstractMRTrafficController pTc)`
`protected abstract AbstractMRReply`	`newReply()`
`protected void`	`notifyMessage(AbstractMRMessage m, AbstractMRListener notMe)`	Forward a Message to registered listeners.
`protected void`	`notifyReply(AbstractMRReply r, AbstractMRListener dest)`	Forward a "Reply" from layout to registered listeners.
`protected abstract AbstractMRMessage`	`pollMessage()`	Invoked if it's appropriate to do low-priority polling of the command station, this should return the next message to send, or null if the TrafficController should just sleep.
`protected abstract AbstractMRListener`	`pollReplyHandler()`
`boolean`	`portReadyToSend(AbstractPortController p)`	Check if PortController object can be sent to.
`protected void`	`portWarn(java.lang.Exception e)`
`protected void`	`portWarnTCP(java.lang.Exception e)`
`protected boolean`	`programmerIdle()`	Check if the programmer is idle.
`protected byte`	`readByteProtected(java.io.DataInputStream istream)`	Read a single byte, protecting against various timeouts, etc.
`void`	`receiveLoop()`	Handle incoming characters.
`protected void`	`recovery()`	Disconnect and reset the current PortController.
`protected void`	`removeListener(AbstractMRListener l)`	Remove a Listener from the Listener list.
`protected void`	`reportReceiveLoopException(java.lang.Exception e)`	Report an error on the receive loop.
`protected void`	`resetTimeout(AbstractMRMessage msg)`
`protected void`	`sendMessage(AbstractMRMessage m, AbstractMRListener reply)`	Forward message to the port.
`protected void`	`setAllowUnexpectedReply(boolean expected)`	Set whether the command station may send messages without a request sent to it.
`protected void`	`setSynchronizeRx(boolean val)`
`boolean`	`status()`
`protected void`	`terminate()`
`void`	`terminateThreads()`	Terminate the receive and transmit threads.
`protected void`	`transmitLoop()`	Permanent loop for the transmit thread.
`protected void`	`transmitWait(int waitTime, int state, java.lang.String interruptMessage)`
`protected void`	`unexpectedReplyStateError(int State, java.lang.String msgString)`	Log an error message for a message received in an unexpected state.
`protected void`	`waitForStartOfReply(java.io.DataInputStream istream)`	Dummy routine, to be filled by protocols that have to skip some start-of-message characters.
`protected void`	`warnOnTimeout(AbstractMRMessage msg, AbstractMRListener l)`

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - cmdListeners
```
protected final java.util.Vector<AbstractMRListener> cmdListeners
```
  - mLastSender
```
protected AbstractMRListener mLastSender
```
  - mCurrentMode
```
protected volatile int mCurrentMode
```
  - NORMALMODE
```
public static final int NORMALMODE
```
    See Also:

    Constant Field Values
  - PROGRAMINGMODE
```
public static final int PROGRAMINGMODE
```
    See Also:

    Constant Field Values
  - mCurrentState
```
protected volatile int mCurrentState
```
  - IDLESTATE
```
public static final int IDLESTATE
```
    See Also:

    Constant Field Values
  - NOTIFIEDSTATE
```
public static final int NOTIFIEDSTATE
```
    See Also:

    Constant Field Values
  - WAITMSGREPLYSTATE
```
public static final int WAITMSGREPLYSTATE
```
    See Also:

    Constant Field Values
  - WAITREPLYINPROGMODESTATE
```
public static final int WAITREPLYINPROGMODESTATE
```
    See Also:

    Constant Field Values
  - WAITREPLYINNORMMODESTATE
```
public static final int WAITREPLYINNORMMODESTATE
```
    See Also:

    Constant Field Values
  - OKSENDMSGSTATE
```
public static final int OKSENDMSGSTATE
```
    See Also:

    Constant Field Values
  - AUTORETRYSTATE
```
public static final int AUTORETRYSTATE
```
    See Also:

    Constant Field Values
  - POLLSTATE
```
public static final int POLLSTATE
```
    See Also:

    Constant Field Values
  - allowUnexpectedReply
```
protected boolean allowUnexpectedReply
```
  - msgQueue
```
protected java.util.LinkedList<AbstractMRMessage> msgQueue
```
    Messages to be transmitted.
  - listenerQueue
```
protected java.util.LinkedList<AbstractMRListener> listenerQueue
```
  - replyInDispatch
```
protected boolean replyInDispatch
```
  - timeoutFlag
```
protected boolean timeoutFlag
```
  - timeouts
```
protected int timeouts
```
  - flushReceiveChars
```
protected boolean flushReceiveChars
```
  - mWaitBeforePoll
```
protected int mWaitBeforePoll
```
  - waitTimePoll
```
protected long waitTimePoll
```
  - xmtException
```
protected boolean xmtException
```
  - connectionError
```
protected boolean connectionError
```
  - controller
```
public AbstractPortController controller
```
  - xmtThread
```
protected volatile java.lang.Thread xmtThread
```
  - rcvThread
```
protected volatile java.lang.Thread rcvThread
```
  - xmtRunnable
```
protected volatile java.lang.Runnable xmtRunnable
```
  - istream
```
protected java.io.DataInputStream istream
```
  - ostream
```
protected java.io.OutputStream ostream
```
  - rcvException
```
protected boolean rcvException
```
  - maxRcvExceptionCount
```
protected int maxRcvExceptionCount
```
  - threadStopRequest
```
protected volatile boolean threadStopRequest
```
    Flag that threads should terminate as soon as they can.
- Constructor Detail
  - AbstractMRTrafficController
```
public AbstractMRTrafficController()
```
    Create a new unnamed MRTrafficController.
- Method Detail
  - setSynchronizeRx
```
protected void setSynchronizeRx(boolean val)
```
  - getSynchronizeRx
```
protected boolean getSynchronizeRx()
```
  - addListener
```
protected void addListener(AbstractMRListener l)
```
    Add a Listener to the Listener list.

    Parameters:

    l - The Listener to be added, not null.
  - addConsoleListener
```
protected void addConsoleListener(@Nonnull
                                  AbstractMRListener l)
```
    Add a Listener to start of the Listener list. Intended for use only by system Consoles which may prefer notification before other objects have processed a Message and sent a Reply.

    Parameters:

    l - The Listener to be added, not null.
  - removeListener
```
protected void removeListener(AbstractMRListener l)
```
    Remove a Listener from the Listener list. The Listener will receive no further notifications.

    Parameters:

    l - The Listener to be removed.
  - notifyMessage
```
protected void notifyMessage(AbstractMRMessage m,
                             AbstractMRListener notMe)
```
    Forward a Message to registered listeners.

    Parameters:

    m - Message to be forwarded intact

    notMe - One (optional) listener to be skipped, usually because it's the originating object.
  - forwardMessage
```
protected abstract void forwardMessage(AbstractMRListener client,
                                       AbstractMRMessage m)
```
    Implement this to forward a specific message type to a protocol-specific listener interface. This puts the casting into the concrete class.

    Parameters:

    client - abstract listener.

    m - message to forward.
  - pollMessage
```
protected abstract AbstractMRMessage pollMessage()
```
    Invoked if it's appropriate to do low-priority polling of the command station, this should return the next message to send, or null if the TrafficController should just sleep.

    Returns:

    Formatted poll message
  - pollReplyHandler
```
protected abstract AbstractMRListener pollReplyHandler()
```
  - enterProgMode
```
protected abstract AbstractMRMessage enterProgMode()
```
    Set the system to programming mode.

    Returns:

    any message that needs to be returned to the Command Station to change modes. If no message is needed, returns null.

    See Also:

    enterNormalMode()
  - enterNormalMode
```
protected abstract AbstractMRMessage enterNormalMode()
```
    Sets the system to normal mode during programming while in IDLESTATE. If programmerIdle() returns true, enterNormalMode() is called after a timeout.

    Returns:

    any message that needs to be returned to the Command Station to change modes. If no message is needed, returns null.

    See Also:

    enterProgMode()
  - programmerIdle
```
protected boolean programmerIdle()
```
    Check if the programmer is idle. Override in the system specific code if necessary (see notes for enterNormalMode().

    Returns:

    true if not busy programming
  - enterProgModeDelayTime
```
protected int enterProgModeDelayTime()
```
    Get the delay (wait time) after enabling the programming track. Override in subclass to add a longer delay.

    Returns:

    0 as default delay
  - setAllowUnexpectedReply
```
protected void setAllowUnexpectedReply(boolean expected)
```
    Set whether the command station may send messages without a request sent to it.

    Parameters:

    expected - true to allow messages without a prior request
  - notifyReply
```
protected void notifyReply(AbstractMRReply r,
                           AbstractMRListener dest)
```
    Forward a "Reply" from layout to registered listeners.

    Parameters:

    r - Reply to be forwarded intact

    dest - One (optional) listener to be skipped, usually because it's the originating object.
  - forwardReply
```
protected abstract void forwardReply(AbstractMRListener client,
                                     AbstractMRReply m)
```
  - sendMessage
```
protected void sendMessage(AbstractMRMessage m,
                           AbstractMRListener reply)
```
    Forward message to the port. Messages are queued and then the transmission thread is notified.

    Parameters:

    m - the message to send

    reply - the Listener sending the message, often provided as 'this'

    See Also:

    forwardToPort(AbstractMRMessage, AbstractMRListener)
  - transmitLoop
```
protected void transmitLoop()
```
    Permanent loop for the transmit thread.
  - transmitWait
```
protected void transmitWait(int waitTime,
                            int state,
                            java.lang.String interruptMessage)
```
  - hasTimeouts
```
public boolean hasTimeouts()
```
    Determine if the interface is down.

    Returns:

    timeoutFlag
  - handleTimeout
```
protected void handleTimeout(AbstractMRMessage msg,
                             AbstractMRListener l)
```
  - warnOnTimeout
```
protected void warnOnTimeout(AbstractMRMessage msg,
                             AbstractMRListener l)
```
  - resetTimeout
```
protected void resetTimeout(AbstractMRMessage msg)
```
  - addHeaderToOutput
```
protected int addHeaderToOutput(byte[] msg,
                                AbstractMRMessage m)
```
    Add header to the outgoing byte stream.

    Parameters:

    msg - the output byte stream

    m - Message results

    Returns:

    next location in the stream to fill
  - addTrailerToOutput
```
protected void addTrailerToOutput(byte[] msg,
                                  int offset,
                                  AbstractMRMessage m)
```
    Add trailer to the outgoing byte stream.

    Parameters:

    msg - the output byte stream

    offset - the first byte not yet used

    m - output message to extend
  - lengthOfByteStream
```
protected int lengthOfByteStream(AbstractMRMessage m)
```
    Determine how many bytes the entire message will take, including space for header and trailer.

    Parameters:

    m - the message to be sent

    Returns:

    number of bytes
  - forwardToPort
```
protected void forwardToPort(AbstractMRMessage m,
                             AbstractMRListener reply)
```
    Actually transmit the next message to the port.

    Parameters:

    m - the message to send

    reply - the Listener sending the message, often provided as 'this'

    See Also:

    sendMessage(AbstractMRMessage, AbstractMRListener)
  - connectionWarn
```
protected void connectionWarn()
```
  - portWarn
```
protected void portWarn(java.lang.Exception e)
```
  - portWarnTCP
```
protected void portWarnTCP(java.lang.Exception e)
```
  - status
```
public boolean status()
```
  - connectPort
```
public void connectPort(AbstractPortController p)
```
    Make connection to an existing PortController object.

    Parameters:

    p - the PortController
  - getPortName
```
public java.lang.String getPortName()
```
    Get the port name for this connection from the TrafficController.

    Returns:

    the name of the port
  - disconnectPort
```
public void disconnectPort(AbstractPortController p)
```
    Break connection to existing PortController object. Once broken, attempts to send via "message" member will fail.

    Parameters:

    p - the PortController
  - portReadyToSend
```
public boolean portReadyToSend(AbstractPortController p)
```
    Check if PortController object can be sent to.

    Parameters:

    p - the PortController

    Returns:

    true if ready, false otherwise May throw an Exception.
  - receiveLoop
```
public void receiveLoop()
```
    Handle incoming characters. This is a permanent loop, looking for input messages in character form on the stream connected to the PortController via connectPort(AbstractPortController).
    Each turn of the loop is the receipt of a single message.
  - recovery
```
protected final void recovery()
```
    Disconnect and reset the current PortController. Invoked at abnormal ending of receiveLoop.
  - reportReceiveLoopException
```
protected void reportReceiveLoopException(java.lang.Exception e)
```
    Report an error on the receive loop. Separated so tests can suppress, even though message is asynchronous.

    Parameters:

    e - Exception encountered at lower level to trigger error, or null
  - newReply
```
protected abstract AbstractMRReply newReply()
```
  - endOfMessage
```
protected abstract boolean endOfMessage(AbstractMRReply r)
```
  - waitForStartOfReply
```
protected void waitForStartOfReply(java.io.DataInputStream istream)
                            throws java.io.IOException
```
    Dummy routine, to be filled by protocols that have to skip some start-of-message characters.

    Parameters:

    istream - input source

    Throws:

    java.io.IOException - from underlying operations
  - readByteProtected
```
protected byte readByteProtected(java.io.DataInputStream istream)
                          throws java.io.IOException
```
    Read a single byte, protecting against various timeouts, etc.
    When a port is set to have a receive timeout, some will return zero bytes, an EOFException or a InterruptedIOException at the end of the timeout. In that case, the read() should be repeated to get the next real character.

    Parameters:

    istream - stream to read

    Returns:

    the byte read

    Throws:

    java.io.IOException - if unable to read
  - loadChars
```
protected void loadChars(AbstractMRReply msg,
                         java.io.DataInputStream istream)
                  throws java.io.IOException
```
    Get characters from the input source, and file a message.
    Returns only when the message is complete.
    Only used in the Receive thread.
    Handles timeouts on read by ignoring zero-length reads.

    Parameters:

    msg - message to fill

    istream - character source.

    Throws:

    java.io.IOException - when presented by the input source.
  - canReceive
```
protected boolean canReceive()
```
    Override in the system specific code if necessary

    Returns:

    true if it is okay to buffer receive characters into a reply message. When false, discard char received
  - distributeReply
```
protected void distributeReply(java.lang.Runnable r)
```
    Executes a reply distribution action on the appropriate thread for JMRI.

    Parameters:

    r - a runnable typically encapsulating a MRReply and the iteration code needed to send it to all the listeners.
  - handleOneIncomingReply
```
public void handleOneIncomingReply()
                            throws java.io.IOException
```
    Handle each reply when complete.
    (This is public for testing purposes) Runs in the "Receive" thread.

    Throws:

    java.io.IOException - on error.
  - unexpectedReplyStateError
```
protected void unexpectedReplyStateError(int State,
                                         java.lang.String msgString)
```
    Log an error message for a message received in an unexpected state.

    Parameters:

    State - message state.

    msgString - message string.
  - getLastSender
```
public AbstractMRListener getLastSender()
```
    for testing purposes, let us be able to find out what the last sender was.

    Returns:

    last sender, mLastSender.
  - terminate
```
protected void terminate()
```
  - newRcvNotifier
```
protected AbstractMRTrafficController.RcvNotifier newRcvNotifier(AbstractMRReply pMsg,
                                                                 AbstractMRListener pDest,
                                                                 AbstractMRTrafficController pTc)
```
  - terminateThreads
```
public void terminateThreads()
```
    Terminate the receive and transmit threads.
    This is intended to be used only by testing subclasses.

Class AbstractMRTrafficController

Nested Class Summary

Field Summary

Constructor Summary

Method Summary

Methods inherited from class java.lang.Object

Field Detail

cmdListeners

mLastSender

mCurrentMode

NORMALMODE

PROGRAMINGMODE

mCurrentState

IDLESTATE

NOTIFIEDSTATE

WAITMSGREPLYSTATE

WAITREPLYINPROGMODESTATE

WAITREPLYINNORMMODESTATE

OKSENDMSGSTATE

AUTORETRYSTATE

POLLSTATE

allowUnexpectedReply

msgQueue

listenerQueue

replyInDispatch

timeoutFlag

timeouts

flushReceiveChars

mWaitBeforePoll

waitTimePoll

xmtException

connectionError

controller

xmtThread

rcvThread

xmtRunnable

istream

ostream

rcvException

maxRcvExceptionCount

threadStopRequest

Constructor Detail

AbstractMRTrafficController

Method Detail

setSynchronizeRx

getSynchronizeRx

addListener

addConsoleListener

removeListener

notifyMessage

forwardMessage

pollMessage

pollReplyHandler

enterProgMode

enterNormalMode

programmerIdle

enterProgModeDelayTime

setAllowUnexpectedReply

notifyReply

forwardReply

sendMessage

transmitLoop

transmitWait

hasTimeouts

handleTimeout

warnOnTimeout

resetTimeout

addHeaderToOutput

addTrailerToOutput

lengthOfByteStream

forwardToPort

connectionWarn

portWarn

portWarnTCP

status

connectPort

getPortName

disconnectPort

portReadyToSend

receiveLoop
