Package jmri

Class Block

java.lang.Object
jmri.implementation.AbstractNamedBean
jmri.Block
All Implemented Interfaces:
Comparable<NamedBean>, PropertyChangeProvider, NamedBean, PhysicalLocationReporter
Direct Known Subclasses:
OBlock
public class Block extends AbstractNamedBean implements PhysicalLocationReporter
Represents a particular piece of track, more informally a "Block".

A Block (at least in this implementation) corresponds exactly to the track covered by at most one sensor. That could be generalized in the future.

As trains move around the layout, a set of Block objects that are attached to sensors can interact to keep track of which train is where, going in which direction. As a result of this, the set of Block objects pass around "token" (value) Objects representing the trains. This could be e.g. a Throttle to control the train, or something else.

A block maintains a "direction" flag that is set from the direction of the incoming train. When an arriving train is detected via the connected sensor and the Block's status information is sufficient to determine that it is arriving via a particular Path, that Path's getFromBlockDirection becomes the direction of the train in this Block.

Optionally, a Block can be associated with a Reporter. In this case, the Reporter will provide the Block with the "token" (value). This could be e.g an RFID reader reading an ID tag attached to a locomotive. Depending on the specific Reporter implementation, either the current reported value or the last reported value will be relevant, this can be configured.

Objects of this class are Named Beans, so can be manipulated through tables, have listeners, etc.

The type letter used in the System Name is 'B' for 'Block'. The default implementation is not system-specific, so a system letter of 'I' is appropriate. This leads to system names like "IB201".

Issues:

  • The tracking doesn't handle a train pulling in behind another well:
    • When the 2nd train arrives, the Sensor is already active, so the value is unchanged (but the value can only be a single object anyway)
    • When the 1st train leaves, the Sensor stays active, so the value remains that of the 1st train
  • The assumption is that a train will only go through a set turnout. For example, a train could come into the turnout block from the main even if the turnout is set to the siding. (Ignoring those layouts where this would cause a short; it doesn't do so on all layouts)
  • Does not handle closely-following trains where there is only one electrical block per signal. To do this, it probably needs some type of "assume a train doesn't back up" logic. A better solution is to have multiple sensors and Block objects between each signal head.
  • If a train reverses in a block and goes back the way it came (e.g. b1 to b2 to b1), the block that's re-entered will get an updated direction, but the direction of this block (b2 in the example) is not updated. In other words, we're not noticing that the train must have reversed to go back out.

Do not assume that a Block object uniquely represents a piece of track. To allow independent development, it must be possible for multiple Block objects to take care of a particular section of track.

Possible state values:

  • UNKNOWN - The sensor shows UNKNOWN, so this block doesn't know if it's occupied or not.
  • INCONSISTENT - The sensor shows INCONSISTENT, so this block doesn't know if it's occupied or not.
  • OCCUPIED - This sensor went active. Note that OCCUPIED will be set even if the logic is unable to figure out which value to take.
  • UNOCCUPIED - No content, because the sensor has determined this block is unoccupied.
  • UNDETECTED - No sensor configured.

Possible Curvature attributes (optional) User can set the curvature if desired for use in automatic running of trains, to indicate where slow down is required.

  • NONE - No curvature in Block track, or Not entered.
  • GRADUAL - Gradual curve - no action by engineer is warranted - full speed OK
  • TIGHT - Tight curve in Block track - Train should slow down some
  • SEVERE - Severe curve in Block track - Train should slow down a lot

The length of the block may also optionally be entered if desired. This attribute is for use in automatic running of trains. Length should be the actual length of model railroad track in the block. It is always stored here in millimeter units. A length of 0.0 indicates no entry of length by the user.

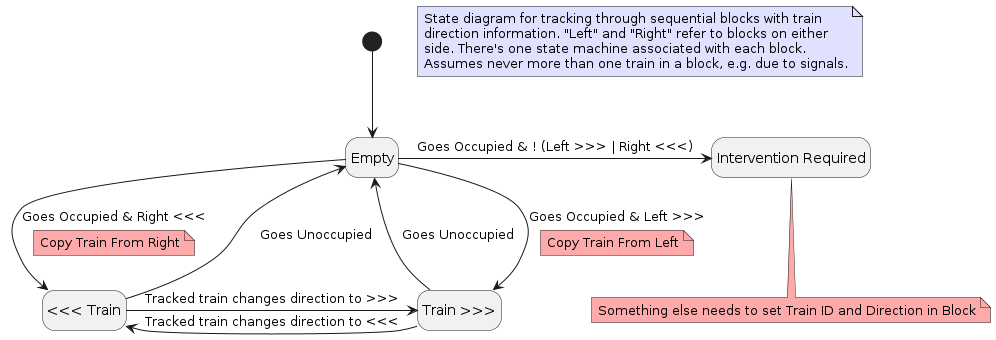

State diagram for train tracking

  • Field Details

    • OCCUPIED

      public static final int OCCUPIED
      See Also:

    • UNOCCUPIED

      public static final int UNOCCUPIED
      See Also:

    • UNDETECTED

      public static final int UNDETECTED
      Undetected status, i.e a "Dark" block. A Block with unknown status could be waiting on feedback from a Sensor, hence undetected may be more appropriate if no Sensor.

      OBlocks use this constant in combination with other OBlock status flags. Block uses this constant as initial status, also when a Sensor is unset from the block.

      See Also:

    • NONE

      public static final int NONE
      No Curvature.
      See Also:

    • GRADUAL

      public static final int GRADUAL
      Gradual Curvature.
      See Also:

    • TIGHT

      public static final int TIGHT
      Tight Curvature.
      See Also:

    • SEVERE

      public static final int SEVERE
      Severe Curvature.
      See Also:

    • OCC_SENSOR_CHANGE

      public static final String OCC_SENSOR_CHANGE
      Property name change fired when a Sensor is set to / removed from a Block. The fired event includes old value: Sensor Bean Object if previously set, else null new value: Sensor Bean Object if being set, may be null if Sensor removed.
      See Also:

    • BLOCK_REPORTER_CHANGE

      public static final String BLOCK_REPORTER_CHANGE
      Property name change fired when a Sensor is set to / removed from a Block. The fired event includes old value: Sensor Bean Object if previously set, else null new value: Sensor Bean Object if being set, may be null if Sensor removed.
      See Also:

    • BLOCK_REPORTING_CURRENT

      public static final String BLOCK_REPORTING_CURRENT
      Property name change fired when the Block reporting Current flag changes. The fired event includes old value: previous value, Boolean. new value: new value, Boolean.
      See Also:

    • BLOCK_PERMISSIVE_CHANGE

      public static final String BLOCK_PERMISSIVE_CHANGE
      Property name change fired when the Block Permissive Status changes. The fired event includes old value: previous permissive status. new value: new permissive status.
      See Also:

    • GHOST_CHANGE

      public static final String GHOST_CHANGE
      Property name change fired when the Block ghost Status changes. The fired event includes old value: previous ghost status. new value: new ghost status.
      See Also:

    • BLOCK_SPEED_CHANGE

      public static final String BLOCK_SPEED_CHANGE
      Property name change fired when the Block Speed changes. The fired event includes old value: previous speed String. new value: new speed String.
      See Also:

    • BLOCK_CURVATURE_CHANGE

      public static final String BLOCK_CURVATURE_CHANGE
      Property name change fired when the Block Curvature changes. The fired event includes old value: previous Block Curvature Constant. new value: new Block Curvature Constant.
      See Also:

    • BLOCK_LENGTH_CHANGE

      public static final String BLOCK_LENGTH_CHANGE
      Property name change fired when the Block Length changes. The fired event includes old value: previous float length (mm). new value: new float length (mm).
      See Also:

    • PROPERTY_VALUE

      public static final String PROPERTY_VALUE
      String constant for property changes to value.
      See Also:

    • PROPERTY_DIRECTION

      public static final String PROPERTY_DIRECTION
      String constant for property changes to direction.
      See Also:

    • PROPERTY_ALLOCATED

      public static final String PROPERTY_ALLOCATED
      String constant for property changes to allocated.
      See Also:

  • Constructor Details

    • Block

      public Block(String systemName)
      Create a new Block.
      Parameters:
      systemName - Block System Name.

    • Block

      public Block(String systemName, String userName)
      Create a new Block.
      Parameters:
      systemName - system name.
      userName - user name.

  • Method Details

    • toDebugString

      public String toDebugString()
      Create a Debug String, this should only be used for debugging...
      Returns:
      Block User name, System name, current state as string value.

    • setSensor

      public boolean setSensor(String pName)
      Set the sensor by name. Fires propertyChange "OccupancySensorChange" when changed.
      Parameters:
      pName - the name of the Sensor to set
      Returns:
      true if a Sensor is set and is not null; false otherwise

    • setNamedSensor

      public void setNamedSensor(@CheckForNull NamedBeanHandle<Sensor> s)
      Set Block Occupancy Sensor. If Sensor set, Adds PCL, sets Block Occupancy Status to Sensor. Block State PropertyChange Event will fire. Does NOT route initial Sensor Status via goingUnknown() / goingActive() etc.

      If Sensor null, removes PCL on previous Sensor, sets Block status to UNDETECTED.

      Parameters:
      s - Handle for Sensor.

    • getSensor

      @CheckForNull public Sensor getSensor()
      Get the Block Occupancy Sensor.
      Returns:
      Sensor if one attached to Block, may be null.

    • getNamedSensor

      @CheckForNull public NamedBeanHandle<Sensor> getNamedSensor()

    • setReporter

      public void setReporter(@CheckForNull Reporter reporter)
      Set the Reporter that should provide the data value for this block. Fires propertyChange "BlockReporterChange" when changed.
      Parameters:
      reporter - Reporter object to link, or null to clear
      See Also:

    • getReporter

      @CheckForNull public Reporter getReporter()
      Retrieve the Reporter that is linked to this Block
      Returns:
      linked Reporter object, or null if not linked
      See Also:

    • setReportingCurrent

      public void setReportingCurrent(boolean reportingCurrent)
      Define if the Block's value should be populated from the current report or from the last report. Fires propertyChange "BlockReportingCurrent" when changed.
      Parameters:
      reportingCurrent - true if to use current report; false if to use last report
      See Also:

    • isReportingCurrent

      public boolean isReportingCurrent()
      Determine if the Block's value is being populated from the current report or from the last report.
      Returns:
      true if populated by current report; false if from last report.
      See Also:

    • getState

      public int getState()
      Get the Block State. OBlocks may well return a combination of states, Blocks will return a single State.
      Specified by:
      getState in interface NamedBean
      Returns:
      Block state.

    • addPath

      public void addPath(@Nonnull Path p)
      Add a Path to List of Paths.
      Parameters:
      p - Path to add, not null.

    • removePath

      public void removePath(Path p)
      Remove a Path from the Block.
      Parameters:
      p - Path to remove.

    • hasPath

      public boolean hasPath(Path p)
      Check if Block has a particular Path.
      Parameters:
      p - Path to test against.
      Returns:
      true if Block has the Path, else false.

    • getPaths

      @Nonnull public List<Path> getPaths()
      Get a copy of the list of Paths.
      Returns:
      the paths or an empty list

    • setState

      public void setState(int v)
      Provide a general method for updating the report. Fires propertyChange "state" when called.
      Specified by:
      setState in interface NamedBean
      Parameters:
      v - the new state

    • setValue

      public void setValue(Object value)
      Set the value retained by this Block. Also used when the Block itself gathers a value from an adjacent Block. This can be overridden in a subclass if e.g. you want to keep track of Blocks elsewhere, but make sure you also eventually invoke the super.setValue() here. Fires propertyChange "value" when changed.
      Parameters:
      value - The new Object resident in this block, or null if none

    • getValue

      @CheckForNull public Object getValue()
      Get the Block Contents Value.
      Returns:
      object with current value, could be null.

    • setDirection

      public void setDirection(int direction)
      Set Block Direction of Travel. Fires propertyChange "direction" when changed.
      Parameters:
      direction - Path Constant form, see Path.java

    • getDirection

      public int getDirection()
      Get Block Direction of Travel.
      Returns:
      direction in Path Constant form, see Path.java

    • addBlockDenyList

      public void addBlockDenyList(@Nonnull String pName)
      Add to the Block Deny List. The block deny list, is used by higher level code, to determine if traffic/trains should be allowed to enter from an attached block, the list only deals with blocks that access should be denied from.

      If we want to prevent traffic from following from this Block to another, then this Block must be added to the deny list of the other Block. By default no Block is barred, so traffic flow is bi-directional.

      Parameters:
      pName - name of the block to add, which must exist

    • addBlockDenyList

      public void addBlockDenyList(@Nonnull Block blk)

    • removeBlockDenyList

      public void removeBlockDenyList(String blk)

    • removeBlockDenyList

      public void removeBlockDenyList(Block blk)

    • getDeniedBlocks

      public List<String> getDeniedBlocks()

    • isBlockDenied

      public boolean isBlockDenied(String deny)

    • isBlockDenied

      public boolean isBlockDenied(Block deny)

    • getPermissiveWorking

      public boolean getPermissiveWorking()
      Get if Block can have permissive working. Blocks default to non-permissive, i.e. false.
      Returns:
      true if permissive, else false.

    • setPermissiveWorking

      public void setPermissiveWorking(boolean w)
      Set Block as permissive. Fires propertyChange "BlockPermissiveWorking" when changed.
      Parameters:
      w - true permissive, false NOT permissive

    • getIsGhost

      public boolean getIsGhost()
      Get if Block is a ghost. Blocks default to non-ghost, i.e. false.
      Returns:
      true if ghost, else false.

    • setIsGhost

      public void setIsGhost(boolean w)
      Set if the block is a ghost Fires propertyChange "BlockGhost" when changed.
      Parameters:
      w - true ghost, false NOT ghost

    • getSpeedLimit

      public float getSpeedLimit()

    • getBlockSpeed

      public String getBlockSpeed()

    • setBlockSpeedName

      public void setBlockSpeedName(String s)
      Set the Block Speed Name.

      Does not perform name validity checking. Does not send Property Change Event.

      Parameters:
      s - new Speed Name String.

    • setBlockSpeed

      public void setBlockSpeed(String s) throws JmriException
      Set the Block Speed, preferred method.

      Fires propertyChange "BlockSpeedChange" when changed.

      Parameters:
      s - Speed String
      Throws:
      JmriException - if Value of requested block speed is not valid.

    • setCurvature

      public void setCurvature(int c)
      Set Block Curvature Constant. Valid values : Block.NONE, Block.GRADUAL, Block.TIGHT, Block.SEVERE Fires propertyChange "BlockCurvatureChange" when changed.
      Parameters:
      c - Constant, e.g. Block.GRADUAL

    • getCurvature

      public int getCurvature()
      Get Block Curvature Constant. Defaults to Block.NONE
      Returns:
      constant, e.g. Block.TIGHT

    • setLength

      public void setLength(float l)
      Set length in millimeters. Paths will inherit this length, if their length is not specifically set. This length is the maximum length of any Path in the block. Path lengths exceeding this will be set to the default length.

      Fires propertyChange "BlockLengthChange" when changed, float values in mm.

      Parameters:
      l - length in millimeters

    • getLengthMm

      public float getLengthMm()
      Get Block Length in Millimetres. Default 0.0f.
      Returns:
      length in mm.

    • getLengthCm

      public float getLengthCm()
      Get Block Length in Centimetres. Courtesy method using result from getLengthMm.
      Returns:
      length in centimetres.

    • getLengthIn

      public float getLengthIn()
      Get Block Length in Inches. Courtesy method using result from getLengthMm.
      Returns:
      length in inches.

    • equals

      public boolean equals(Object obj)
      Note: this has to make choices about identity values (always the same) and operation values (can change as the block works). Might be missing some identity values.
      Overrides:
      equals in class AbstractNamedBean
      Parameters:
      obj - the reference object with which to compare.
      Returns:
      true if this object is the same as the obj argument; false otherwise.

    • hashCode

      public int hashCode()
      Description copied from class: AbstractNamedBean
      Overrides:
      hashCode in class AbstractNamedBean
      Returns:
      hash code value is based on the system name.

    • resetCandidateEntrancePaths

      void resetCandidateEntrancePaths()

    • setAsEntryBlockIfPossible

      boolean setAsEntryBlockIfPossible(Block b)

    • handleSensorChange

      void handleSensorChange(PropertyChangeEvent e)
      Handle change in sensor state.

      Defers real work to goingActive, goingInactive methods.

      Parameters:
      e - the event

    • goingUnknown

      public void goingUnknown()

    • goingInconsistent

      public void goingInconsistent()

    • handleReporterChange

      void handleReporterChange(PropertyChangeEvent e)
      Handle change in Reporter value.
      Parameters:
      e - PropertyChangeEvent

    • goingInactive

      public void goingInactive()
      Handles Block sensor going INACTIVE: this block is empty

    • goingActive

      public void goingActive()
      Handles Block sensor going ACTIVE: this block is now occupied, figure out from who and copy their value.

    • findFromPath

      @CheckForNull public Path findFromPath()
      Find which path this Block became Active, without actually modifying the state of this block.

      (this is largely a copy of the 'Search' part of the logic from goingActive())

      Returns:
      the next path

    • setAllocated

      public void setAllocated(Boolean boo)
      This allows the layout block to inform any listeners to the block that the higher level layout block has been set to "useExtraColor" which is an indication that it has been allocated to a section by the AutoDispatcher. The value set is not retained in any form by the block, it is purely to trigger a propertyChangeEvent.
      Parameters:
      boo - Allocation status

    • getLocoAddress

      public LocoAddress getLocoAddress(String rep)
      Parse a given string and return the LocoAddress value that is presumed stored within it based on this object's protocol. The Class Block implementation defers to its associated Reporter, if it exists.
      Specified by:
      getLocoAddress in interface PhysicalLocationReporter
      Parameters:
      rep - String to be parsed
      Returns:
      LocoAddress address parsed from string, or null if this Block isn't associated with a Reporter, or is associated with a Reporter that is not also a PhysicalLocationReporter

    • getDirection

      public PhysicalLocationReporter.Direction getDirection(String rep)
      Parses out a (possibly old) LnReporter-generated report string to extract the direction from within it based on this object's protocol. The Class Block implementation defers to its associated Reporter, if it exists.
      Specified by:
      getDirection in interface PhysicalLocationReporter
      Parameters:
      rep - String to be parsed
      Returns:
      PhysicalLocationReporter.Direction direction parsed from string, or null if this Block isn't associated with a Reporter, or is associated with a Reporter that is not also a PhysicalLocationReporter

    • getPhysicalLocation

      public PhysicalLocation getPhysicalLocation()
      Return this Block's physical location, if it exists. Defers actual work to the helper methods in class PhysicalLocation.
      Specified by:
      getPhysicalLocation in interface PhysicalLocationReporter
      Returns:
      PhysicalLocation : this Block's location.

    • getPhysicalLocation

      public PhysicalLocation getPhysicalLocation(String s)
      Return this Block's physical location, if it exists. Does not use the parameter s. Defers actual work to the helper methods in class PhysicalLocation
      Specified by:
      getPhysicalLocation in interface PhysicalLocationReporter
      Parameters:
      s - (this parameter is ignored)
      Returns:
      PhysicalLocation : this Block's location.

    • vetoableChange

      public void vetoableChange(PropertyChangeEvent evt) throws PropertyVetoException
      Description copied from class: AbstractNamedBean
      Specified by:
      vetoableChange in interface NamedBean
      Overrides:
      vetoableChange in class AbstractNamedBean
      Throws:
      PropertyVetoException

    • getUsageReport

      public List<NamedBeanUsageReport> getUsageReport(NamedBean bean)
      Description copied from interface: NamedBean
      Get a list of references for the specified bean.
      Specified by:
      getUsageReport in interface NamedBean
      Parameters:
      bean - The bean to be checked.
      Returns:
      a list of NamedBeanUsageReports or an empty ArrayList.

    • getBeanType

      public String getBeanType()
      Description copied from interface: NamedBean
      For instances in the code where we are dealing with just a bean and a message needs to be passed to the user or in a log.
      Specified by:
      getBeanType in interface NamedBean
      Returns:
      a string of the bean type, eg Turnout, Sensor etc

    • describeState

      @Nonnull public String describeState(int state)
      Provide human-readable, localized version of state value.

      This method is intended for use when presenting to a human operator.

      Specified by:
      describeState in interface NamedBean
      Overrides:
      describeState in class AbstractNamedBean
      Parameters:
      state - the state to describe
      Returns:
      the state in localized form
