Package jmri.jmrit.ussctc

Class TurnoutSection

java.lang.Object

jmri.jmrit.ussctc.TurnoutSection

All Implemented Interfaces:

CentralSection<CodeGroupTwoBits,CodeGroupTwoBits>, FieldSection<CodeGroupTwoBits,CodeGroupTwoBits>, Section<CodeGroupTwoBits,CodeGroupTwoBits>

public class TurnoutSection
extends java.lang.Object
implements Section<CodeGroupTwoBits,CodeGroupTwoBits>

Drive a single Turnout section on a USS CTC panel. Implements Section for both the field and CTC machine parts. The two parts are implemented as separate FieldSection and CentralSection static inner classes to ensure they're functionally separate, connected only by the code they exchange. They're combined in this single class to make sure they work together.

Note that this intentionally does not turn off indicators when the code button is pressed unless a change has been requested. This is a model-railroad compromise to speed up the dispatcher's ability to see what's going on.

The state diagram for the central section is presented in three parts to make it more useful:

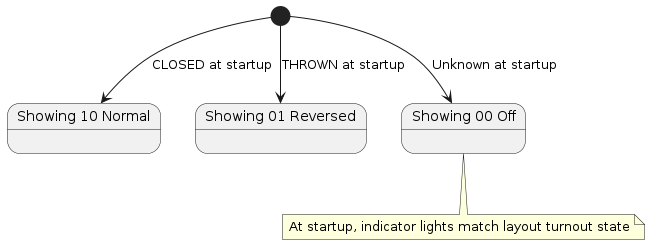

• Initialization

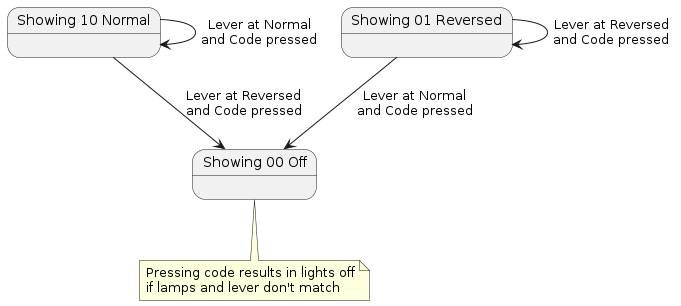

• Handline code button presses

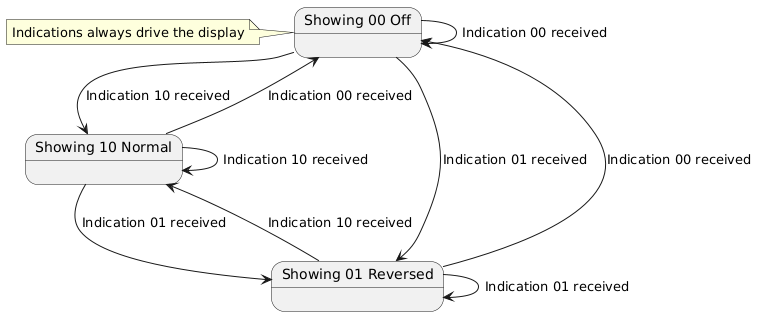

• Receiving indications

Nested Class Summary

Nested Classes

Modifier and Type	Class	Description
(package private) static class	TurnoutSection.TurnoutCentralSection
(package private) class	TurnoutSection.TurnoutFieldSection

Field Summary

Fields

Modifier and Type	Field	Description
(package private) TurnoutSection.TurnoutCentralSection	central
(package private) static CodeGroupTwoBits	CODE_CLOSED
(package private) static CodeGroupTwoBits	CODE_NEITHER
(package private) static CodeGroupTwoBits	CODE_THROWN
(package private) TurnoutSection.TurnoutFieldSection	field
(package private) Station<CodeGroupTwoBits,CodeGroupTwoBits>	station

Constructor Summary

Constructors

Constructor	Description
TurnoutSection()	Anonymous object only for testing
TurnoutSection(java.lang.String layoutTO, java.lang.String normalIndicator, java.lang.String reversedIndicator, java.lang.String normalInput, java.lang.String reversedInput, Station<CodeGroupTwoBits,CodeGroupTwoBits> station)	Create and configure.

Method Summary

Modifier and Type	Method	Description
void	addLocks(java.util.List<Lock> locks)
CodeGroupTwoBits	codeSendStart()	Inform central CTC machine part of section that a code-send operation (from central to field) has started and obtain the value to be sent over the line.
void	codeValueDelivered(CodeGroupTwoBits value)	Provide the transferred value to the field unit at the end of the code-send operation.
java.lang.String	getName()	Name of this Section.
Station<CodeGroupTwoBits,CodeGroupTwoBits>	getStation()
void	indicationComplete(CodeGroupTwoBits value)	Provides the code sequence to the central CTC machine at the end of the indication-send operation.
CodeGroupTwoBits	indicationStart()	Inform field part of section that an indication operation (from field to machine) has started and obtain the value to be conveyed to the central CTC machine.
java.lang.String	toString()

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

field

TurnoutSection.TurnoutFieldSection field

central

TurnoutSection.TurnoutCentralSection central

station

Station<CodeGroupTwoBits,CodeGroupTwoBits> station

CODE_CLOSED

static final CodeGroupTwoBits CODE_CLOSED

CODE_THROWN

static final CodeGroupTwoBits CODE_THROWN

CODE_NEITHER

static final CodeGroupTwoBits CODE_NEITHER

Constructor Detail

TurnoutSection

TurnoutSection()

Anonymous object only for testing

TurnoutSection

public TurnoutSection(java.lang.String layoutTO,
                      java.lang.String normalIndicator,
                      java.lang.String reversedIndicator,
                      java.lang.String normalInput,
                      java.lang.String reversedInput,
                      Station<CodeGroupTwoBits,CodeGroupTwoBits> station)

Create and configure. Accepts user or system names.

Parameters:

layoutTO - Name for turnout on railroad

normalIndicator - Turnout name for normal (left) indicator light on panel

reversedIndicator - Turnout name for reversed (right) indicator light on panel

normalInput - Sensor name for normal (left) side of switch on panel

reversedInput - Sensor name for reversed (right) side of switch on panel

station - Station to which this Section belongs

Method Detail

addLocks

public void addLocks(java.util.List<Lock> locks)

getStation

public Station<CodeGroupTwoBits,CodeGroupTwoBits> getStation()

Specified by:

getStation in interface Section<CodeGroupTwoBits,CodeGroupTwoBits>

getName

public java.lang.String getName()

Description copied from interface: Section

Name of this Section. Does not include name of associated Station.

Specified by:

getName in interface Section<CodeGroupTwoBits,CodeGroupTwoBits>

Returns:

section name without station.

codeSendStart

public CodeGroupTwoBits codeSendStart()

Description copied from interface: CentralSection

Inform central CTC machine part of section that a code-send operation (from central to field) has started and obtain the value to be sent over the line.

Specified by:

codeSendStart in interface CentralSection<CodeGroupTwoBits,CodeGroupTwoBits>

Returns:

The value to be conveyed to the field.

codeValueDelivered

public void codeValueDelivered(CodeGroupTwoBits value)

Description copied from interface: FieldSection

Provide the transferred value to the field unit at the end of the code-send operation.

Specified by:

codeValueDelivered in interface FieldSection<CodeGroupTwoBits,CodeGroupTwoBits>

Parameters:

value - transfer value.

indicationStart

public CodeGroupTwoBits indicationStart()

Description copied from interface: FieldSection

Inform field part of section that an indication operation (from field to machine) has started and obtain the value to be conveyed to the central CTC machine.

Specified by:

indicationStart in interface FieldSection<CodeGroupTwoBits,CodeGroupTwoBits>

Returns:

The value to be conveyed to the central CTC machine.

indicationComplete

public void indicationComplete(CodeGroupTwoBits value)

Description copied from interface: CentralSection

Provides the code sequence to the central CTC machine at the end of the indication-send operation.

Specified by:

indicationComplete in interface CentralSection<CodeGroupTwoBits,CodeGroupTwoBits>

Parameters:

value - to be conveyed.

toString

public java.lang.String toString()

Overrides:

toString in class java.lang.Object
