Package jmri.jmrit.ussctc

@DefaultAnnotation({}) package jmri.jmrit.ussctc

Support for implementing USS CTC systems in JMRI.

Related Documentation

For overviews, tutorials, examples, guides, and tool documentation, please see:

• JMRI USS CTC overview page
• Icons and other useful graphical bits

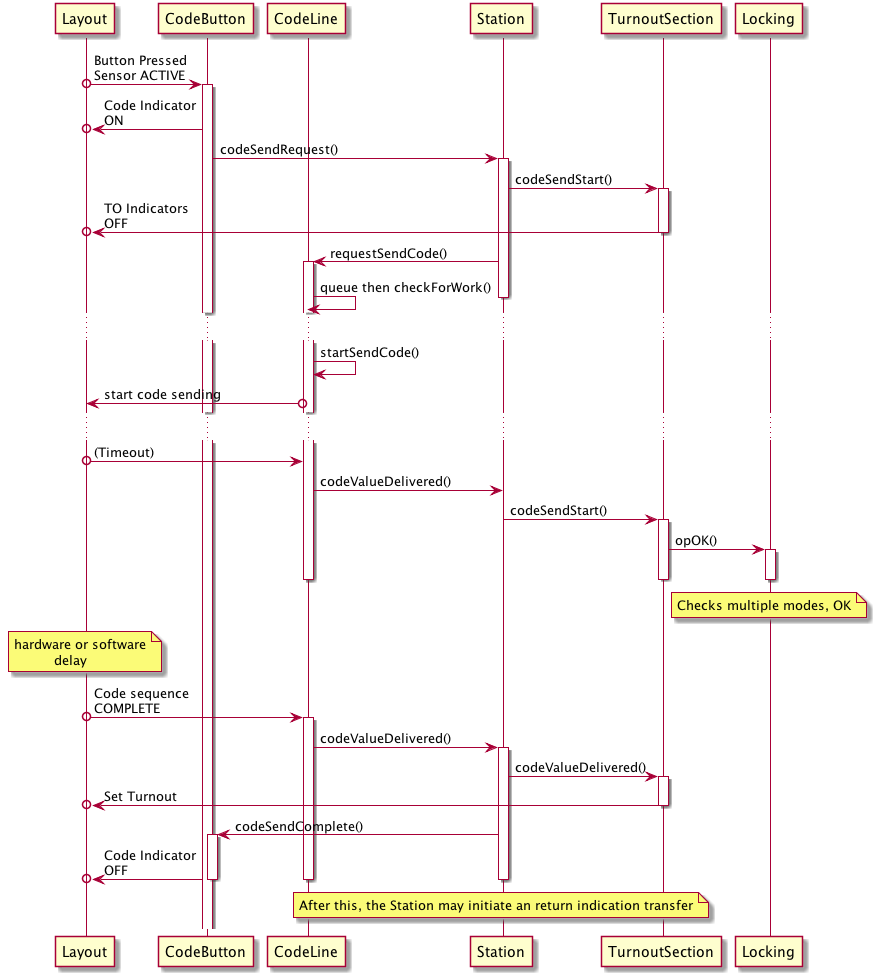

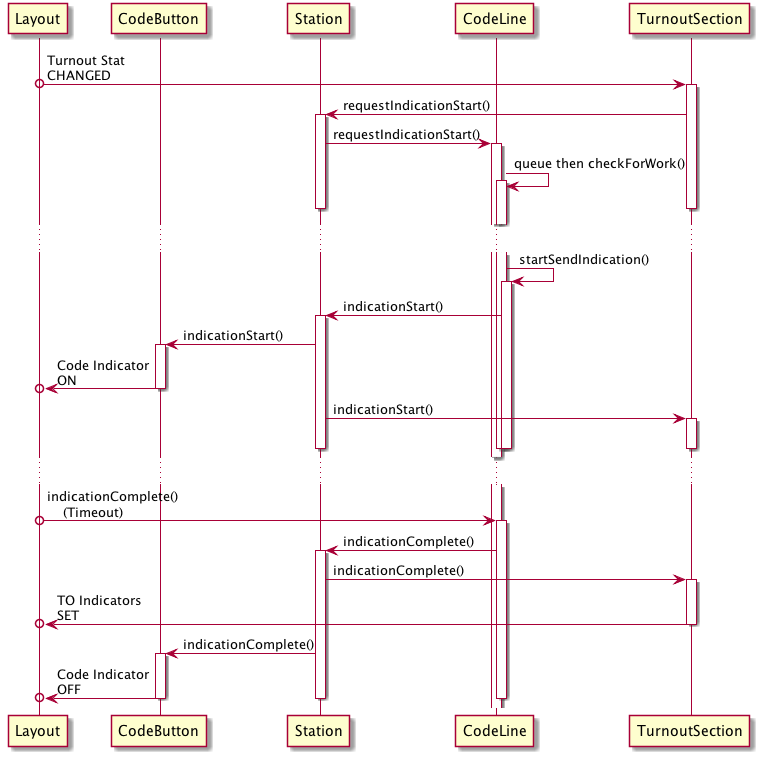

Sequence diagrams of how all this goes together: These are intended to be connected together and initialized by Jython glue code. An example can be found in https:jmri.org/jython/ctc.

Some older tools also have *Panel, *Frame and *Action support classes, and are implemented and persisted via Routes and Logix. This approach didn't scale well enough, so is no longer being used in favor of the Jython approach.

See Also:

• jmri.managers
• jmri.implementation

Related Packages

Package	Description
jmri.jmrit	Various non-system-specific JMRI tools.

Class	Description
BasePanel	Refactored common routines and data for the GUI panels in this package.
Bell	Interface defining operations for a CTC machine bell.
Bundle	Provides standard access for resource bundles in a package.
CentralSection<To extends Enum<To>,From extends Enum<From>>	A Section is the base type for the pieces that make up and are referenced by a Station.
CodeButton	Drive the interactions of a code button and code light on the panel.
CodeGroupNoBits	Define codes for a no-bit field.
CodeGroupOneBit	Define codes for a one-bit field.
CodeGroupThreeBits	Define codes for a three-bit field.
CodeGroupTwoBits	Define codes for a two-bit field.
CodeLine	Drive the code line communications on a USS CTC panel.
CombinedLock	Combines multiple locks into one with an AND operation.
ComputerBell	Derive a CTC machine bell from the computer's speakers
Constants	Define common constants for the ussctc package.
FieldSection<To extends Enum<To>,From extends Enum<From>>	A Section is the base type for the pieces that make up and are referenced by a Station.
Follower	Provide bean-like access to the collection of Logix, Routes, Memories, etc that make up a Follower.
FollowerAction	JmriJFrameAction to create and register a FollowerFrame object
FollowerFrame	User interface frame for creating and editing "Follower" logic on USS CTC machines.
FollowerPanel	User interface frame for creating and editing "Follower" logic on USS CTC machines.
Lock	A Lock is the base interface for implementations that check layout conditions.
Lock.Valid
LockLogger	Manages user-level logging information from Locks and Lock-like functions.
MaintainerCallSection	Drive a single Maintainer Call section on a USS CTC panel.
OccupancyLock	Lock if any of a list of sensors isn't INACTIVE.
OsIndicator	Provide bean-like access to the collection of Logix, Routes, Memories, etc that make up a OsIndicator.
OsIndicatorAction	Swing action to create and register a OsIndicatorFrame object
OsIndicatorFrame	User interface frame for creating and editing "OS Indicator" logic on USS CTC machines.
OsIndicatorPanel	User interface frame for creating and editing "OS Indicator" logic on USS CTC machines.
PhysicalBell	Derive a CTC machine bell via a Turnout output.
RouteLock	Lock if any of the SignalHeads controlling traffic over a turnout are not at stop.
Section<To extends Enum<To>,From extends Enum<From>>	A Section is the base type for the pieces that make up and are referenced by a Station.
SignalHeadSection	Drive a signal section on a USS CTC panel.
SignalHeadSection.Machine
Station<To extends Enum<To>,From extends Enum<From>>	A Station represents a specific codeline field station.
TimeLock	Lock if any of the SignalHeadSections controlling traffic are running time.
ToolsMenu	Create a "Tools" menu containing the USS CTC tools
TrackCircuitSection	Drive a single Track Circuit section on a USS CTC panel.
TrafficLock	Implements a traffic lock.
TrafficRelay	Models a traffic relay.
TrafficRelay.State
TurnoutLock	Lock if a turnout isn't in the desired state.
TurnoutSection	Drive a single Turnout section on a USS CTC panel.
TurnoutSection.TurnoutCentralSection
TurnoutSection.TurnoutCentralSection.State
VetoedBell	Derive a CTC machine bell via a Turnout output.
