jmri.jmrix.lenz
Class XNetProgrammer

java.lang.Object
  jmri.jmrix.AbstractProgrammer
      jmri.jmrix.lenz.XNetProgrammer

All Implemented Interfaces:

EventListener, AbstractMRListener, XNetListener, Programmer

Direct Known Subclasses:

EliteXNetProgrammer, LI100XNetProgrammer

public class XNetProgrammer
extends AbstractProgrammer
implements XNetListener

Programmer support for Lenz XpressNet.

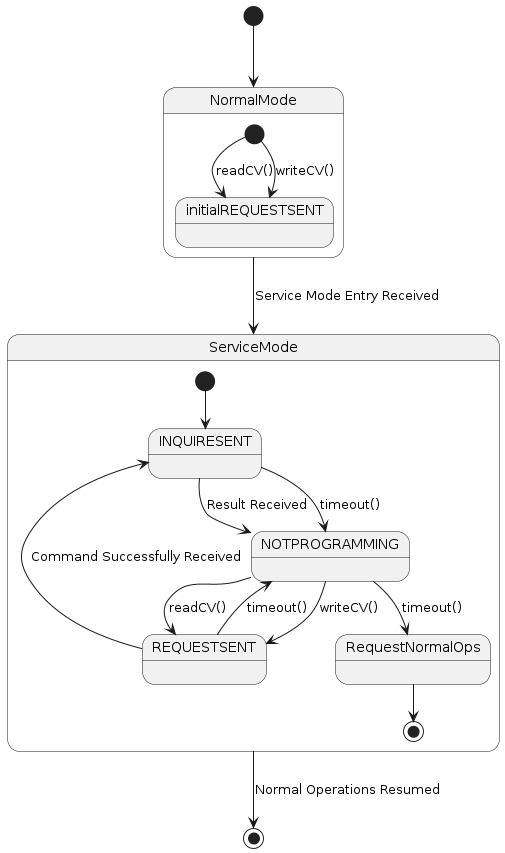

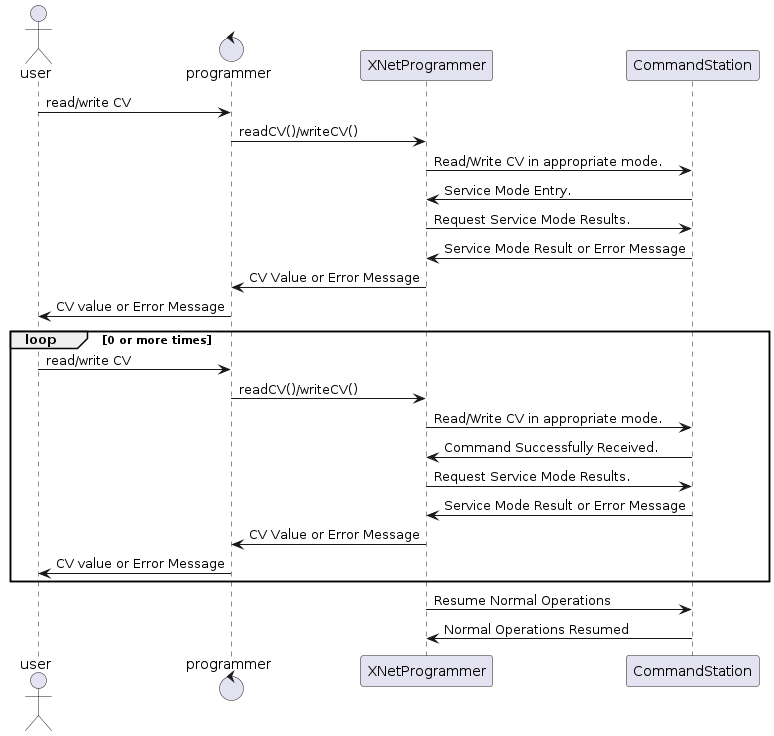

The read operation state sequence is:

• Send Register Mode / Paged mode /Direct Mode read request
• Wait for Broadcast Service Mode Entry message
• Send Request for Service Mode Results request
• Wait for results reply, interpret
• Send Resume Operations request
• Wait for Normal Operations Resumed broadcast

Author:

Bob Jacobsen Copyright (c) 2002, 2007, Paul Bender Copyright (c) 2003-2010, Giorgio Terdina Copyright (c) 2007

Field Summary

protected int	_cv
protected int	_mode
protected boolean	_progRead
protected boolean	_service_mode
protected int	_val
protected static int	INQUIRESENT
protected static int	NOTPROGRAMMING
protected int	progState
protected static int	REQUESTSENT
protected static int	XNetProgrammerTimeout

Fields inherited from class jmri.jmrix.AbstractProgrammer

LONG_TIMEOUT, propListeners, SHORT_TIMEOUT

Fields inherited from interface jmri.Programmer

ADDRESSMODE, CBUSNODEVARMODE, DIRECTBITMODE, DIRECTBYTEMODE, NONE, OPSACCBITMODE, OPSACCBYTEMODE, OPSACCEXTBITMODE, OPSACCEXTBYTEMODE, OPSBITMODE, OPSBYTEMODE, PAGEMODE, REGISTERMODE

Constructor Summary

XNetProgrammer(XNetTrafficController tc)

Method Summary

void	confirmCV(int CV, int val, ProgListener p) Confirm the value of a CV using the specified programming mode.
protected XNetTrafficController	controller()
boolean	getCanRead()
int	getMode() Get the current programming mode
boolean	hasMode(int mode) Signifies mode's available
void	message(XNetMessage l) Member function that will be invoked by a XNetInterface implementation to forward a XNet message sent to the layout.
void	message(XNetReply m) Member function that will be invoked by a XNetInterface implementation to forward a XNet message from the layout.
protected void	notifyProgListenerEnd(int value, int status)
protected void	notifyPropertyChange(String name, int oldval, int newval)
void	notifyTimeout(XNetMessage msg) Member function invoked by an XNetInterface implementation to notify * a sender that an outgoing message timed out and was dropped from the * queue.
boolean	programmerBusy()
void	readCV(int CV, ProgListener p) Perform a CV read in the system-specific manner, and using the specified programming mode.
void	setMode(int mode) Switch to a new programming mode.
protected void	timeout() Internal routine to handle a timeout
protected void	useProgrammer(ProgListener p)
void	writeCV(int CV, int val, ProgListener p) Perform a CV write in the system-specific manner, and using the specified programming mode.

Methods inherited from class jmri.jmrix.AbstractProgrammer

addPropertyChangeListener, decodeErrorCode, registerFromCV, removePropertyChangeListener, restartTimer, startLongTimer, startShortTimer, stopTimer

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

XNetProgrammerTimeout

protected static final int XNetProgrammerTimeout

See Also:

Constant Field Values

_service_mode

protected boolean _service_mode

_mode

protected int _mode

progState

protected int progState

NOTPROGRAMMING

protected static final int NOTPROGRAMMING

See Also:

Constant Field Values

REQUESTSENT

protected static final int REQUESTSENT

See Also:

Constant Field Values

INQUIRESENT

protected static final int INQUIRESENT

See Also:

Constant Field Values

_progRead

protected boolean _progRead

_val

protected int _val

_cv

protected int _cv

Constructor Detail

XNetProgrammer

public XNetProgrammer(XNetTrafficController tc)

Method Detail

setMode

public void setMode(int mode)

Switch to a new programming mode. Lenz can now only do register, page, and direct mode. If you attempt to switch to any others, the new mode will set & notify, then set back to the original. This lets the listeners know that a change happened, and then was undone.

Specified by:

setMode in interface Programmer

Parameters:

mode - The new mode, use values from the jmri.Programmer interface

getMode

public int getMode()

Description copied from interface: Programmer

Get the current programming mode

Specified by:

getMode in interface Programmer

Returns:

one of the class constants identifying a mode

hasMode

public boolean hasMode(int mode)

Signifies mode's available

Specified by:

hasMode in interface Programmer

Parameters:

mode -

Returns:

True if paged,register,or Direct Mode (Bit or Byte) mode

getCanRead

public boolean getCanRead()

Specified by:

getCanRead in interface Programmer

notifyPropertyChange

protected void notifyPropertyChange(String name,
                                    int oldval,
                                    int newval)

writeCV

public void writeCV(int CV,
                    int val,
                    ProgListener p)
             throws ProgrammerException

Description copied from interface: Programmer

Perform a CV write in the system-specific manner, and using the specified programming mode. Note that this returns before the write is complete; you have to provide a ProgListener to hear about completion. The exceptions will only be thrown at the start, not during the actual programming sequence. A typical exception would be due to an invalid mode (though that should be prevented earlier)

Specified by:

writeCV in interface Programmer

Throws:

ProgrammerException

confirmCV

public void confirmCV(int CV,
                      int val,
                      ProgListener p)
               throws ProgrammerException

Description copied from interface: Programmer

Confirm the value of a CV using the specified programming mode. On some systems, this is faster than a read. Note that this returns before the confirm is complete; you have to provide a ProgListener to hear about completion. The exceptions will only be thrown at the start, not during the actual programming sequence. A typical exception would be due to an invalid mode (though that should be prevented earlier)

Specified by:

confirmCV in interface Programmer

Throws:

ProgrammerException

readCV

public void readCV(int CV,
                   ProgListener p)
            throws ProgrammerException

Description copied from interface: Programmer

Perform a CV read in the system-specific manner, and using the specified programming mode. Note that this returns before the read is complete; you have to provide a ProgListener to hear about completion. The exceptions will only be thrown at the start, not during the actual programming sequence. A typical exception would be due to an invalid mode (though that should be prevented earlier)

Specified by:

readCV in interface Programmer

Throws:

ProgrammerException

useProgrammer

protected void useProgrammer(ProgListener p)
                      throws ProgrammerException

Throws:

ProgrammerException

message

public void message(XNetReply m)

Description copied from interface: XNetListener

Member function that will be invoked by a XNetInterface implementation to forward a XNet message from the layout.

Specified by:

message in interface XNetListener

Parameters:

m - The received XNet message. Note that this same object may be presented to multiple users. It should not be modified here.

message

public void message(XNetMessage l)

Description copied from interface: XNetListener

Member function that will be invoked by a XNetInterface implementation to forward a XNet message sent to the layout. Normally, this function will do nothing.

Specified by:

message in interface XNetListener

Parameters:

l - The received XNet message. Note that this same object may be presented to multiple users. It should not be modified here.

notifyTimeout

public void notifyTimeout(XNetMessage msg)

Description copied from interface: XNetListener

Member function invoked by an XNetInterface implementation to notify * a sender that an outgoing message timed out and was dropped from the * queue.

Specified by:

notifyTimeout in interface XNetListener

programmerBusy

public boolean programmerBusy()

timeout

protected void timeout()

Internal routine to handle a timeout

Specified by:

timeout in class AbstractProgrammer

notifyProgListenerEnd

protected void notifyProgListenerEnd(int value,
                                     int status)

controller

protected XNetTrafficController controller()
